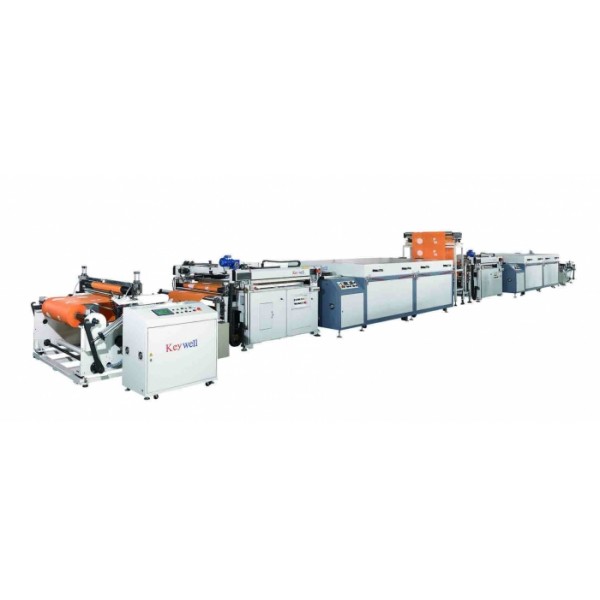

Automatic Roll to Roll Two-Color Screen Printing Machine

Price:: Get Latest Price

Brand:

Validity:: Permanent

Date:: 2015-12-10

Add to My Favorites Add to Inquiry Basket

Seller Information: KEYWELL INDUSTRIAL CO., LTD.; China; Business type: Manufacturer

Contact Seller: Contact Now

Product Detail Company Profile

Suitable for screen printing on non-deforming material in roll, such as PET, PP, PVC, Sticker, Non woven cloth and paper etc.

Features:

1. Winding & unwinding: Pneumatic control bar for easily winding & unwinding.

2. Edge alignment: Roll to roll transmission, the edge of material can be aligned automatically.

3. Feeding length setting: Feeding length of each color can be set by the HMI touch screen, the transmission is by servo motor.

4. Printing function: printing stroke is performed by the servo motor, top grade linear bearing for printing head transmission with high accuracy. Functions: Squeegee stops at front/rear, inching movement, speed control and repeat printing for solid result.

5. Off contact function: the lifting height of the off-contact can be adjusted according to the printing speed to avoid shadow occurred by the screen sticking with substrate.

6. Squeegee cylinder: After pressure setting, the squeegee pressure keeps constant to have more perfect printing result.

7. Printing table: High precision printing table is built by the aerospace purpose aluminum alloy plates with honeycomb structure inside. The surface of the table is hard chrome coated. It’s anti-scratch. The vacuum of the table is even and the strength can be adjusted.

8. Screen frame rack: 4 post up/down movement is driven by the German SEW safety brake motor, the movement is smooth without ink stray.

9. Safety structure: When lifting screen frame for cleaning, the 4 safety cylinders at 4 corners will move up synchronously for safety supporting. The emergency stop button also installed at each corner. All the motors, electric components and pneumatic parts all conform to the CE standard.

10. Dryer: High efficiency force air designed to have quick drying speed and the material will not deform easily. Equip filter, exhaust motor, lifting cylinder of upper cover.

(Drying system: Flat oven, vertical oven, UV lamp oven and UV + Hot air oven are available for option. )

Product Feature

SPECIFICATION:

MODEL	KY-1210R2	KY-98R2	KY-66R2
Max. width of substrate	1250 mm	950 mm	650 mm
Max. roll diameter	800 mm	800 mm	800 mm
Max. print Size(D x W)	1220 x 1100 mm	920 x 800 mm	620 x 620 mm
Max. screen frame size (D x W) (D x W)	1600 x 1600 mm	1300 x 1300 mm	1000 x 1100 mm
Screen frame thickness	30~40 mm	30~40 mm	25~35 mm
Height of cleaning screen	420 mm	420 mm	420 mm
Printing table height from ground	960 + 20 mm	960 + 20 mm	960 + 20 mm
Squeegee/coater speed	0~850 mm/sec.	0~850 mm/sec.	0~850 mm/sec.
Off-contact height	0~45 mm	0~40 mm	0~30 mm
Max. capacity /Hour	420P*2 color	480P*2 color	600P*2 color
Squeegee/coater angle adjustment	22 ± 15°	22 ± 15°	22 ± 15°
Screen frame micro-adjustment	XY±10mm	XY±10mm	XY±10mm
Power source	3∮ 220V/380V 50/60HZ
Hot air temp.	Room temperature~90℃.
Air pressure supply	6-8kg/cm2
Remarks: Following drying system are optional 1. Flat type drying oven 2. Vertical drying oven 3. UV lamp oven 4. UV lamp + Hot air drying oven Special printing size and drying temperature are negotiable.
