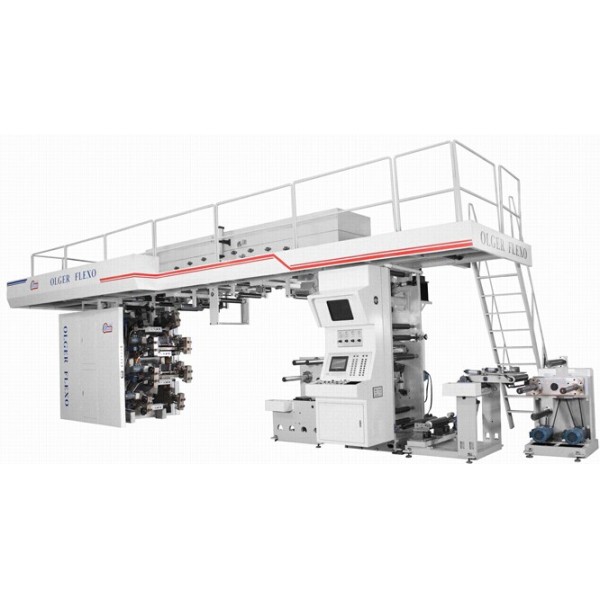

OG400-CI8D Multi-function CI type flexo machine

Main feature

1) Highest production speed can reach 180m/min, register accuracy +-0.1mm, the register accuracy keep unchanged during up and down .

2）Central press roller inner set highly accurately constant temperature control temperature control scope+-0.1℃, diameter direction jumping control±0.008mm.

3) adopts Fast-Color-Registering-System.Electric quantitative positioning fast platecorrection, realizing vertical and horizontal register within 1.5 min.

4) High net line ceramic net line roller, close type double doctor oil loop system, realizing high net line refined printing , small degree of volatilization, not pollute the environment .

5) Plate turning resistance reflects ink viscosity auto detecting style, auto balance control style realizing auto tracing and adjusting control of ink viscosity, control accuracy<±0.4s.

6) Total tension full automatic loop control, machine stop tension keep constant, automatic EPC, making sure the substrate not run, shift, loose and break .

7) High performance, high cost performance ratio.

8) Used for water ink, harmful element not volatile into the air, tradition printing , each square meter volatile 5-6 gram sovent like benzene and ketone; it is beneficial for protecting the environment and human health, with obvious economic benefit and social benefit .

Main parameter:

1）Max. mechanical speed: 200m/min.

2）Printing speed: 120-180 m/min(Subject to substrate & ink spec.)

3）Substrate max. width: 450mm

4）Max. printing width: 400mm

5）Max. diameter of substrate: φ450mm

6）Printing van circumference 350-820mm

7）Printing specifications changes: 10mm

8）horizontal: +/-10mm, vertical: +/-7.5mm, online (in machine running status) electric Quick Color Registering System (QCRS) in quantitative & positioning

9）Printing mode: Full width single side 8colors or half width double sides 8+8 Colors Printing

Substrate suitable for printing: PE/PA tube casing film (50-150um), adhesive paper etc. roll shape material.
