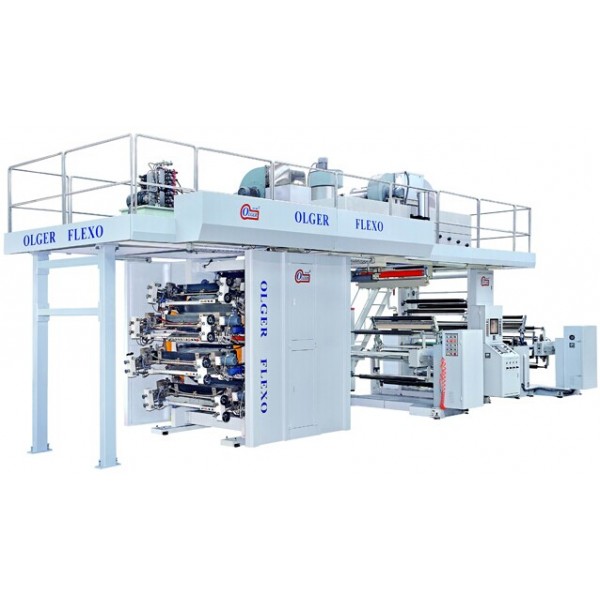

OG1200-CI8B CI Type Web Flexographic Printing Machine

Main Feature:

1) Prompt print for production once printing plate mounted & color registered, no need to adjust plates again, improved production yield.

2) Changing a set of plate roller(fastened after unloaded 8pcs old plate roller and loaded 8pcs new plate roller) , it need 25 minutes only.

3) After plate rollers initially loaded, the electric Quick Color Registering System (QCRS) in quantitative & positioning can achieve the horizontal & vertical color registering within 1min. at suggested speed at50m/min.

4) Max production speed is up to180m/min., registering allowance +/-0.1mm, the registering accuracy does not fluctuate during speed up or down.

5) Substrate’s tension is held during machine paused, avoids substrate shifted.

6) Automatic twin channel unwinding/ winding unit, achieving auto substrate cutting/ rolls jointing/ rolls switching on running status and no need to speed down.

7）Precise structure, simple operation, convenient maintenance & high automation, only ONE worker needed in machine operation.

Main Parameters:

1) Max. mechanical speed:200m/min.

2) Printing speed: 120-180m/min. (Subject to substrate & ink spec.)

3) Substrate max. width:1250mm

4) Max. printing width:1200mm

5) Max. diameter of winding roll: φ600mm

6) Repeat length: 350-820mm

7) Gearing:10mm

8) Printing plate correcting: horizontal: +/-10mm, vertical: +/-7.5mm, online (in machine running status) electric Quick Color Registering System (QCRS) in quantitative & positioning

9) Printing colors: Single side 08 colors printing

Applicants: Continuously multi-color web printing for substrate rolls with excellent printing performance, as BOPP/PET/PVC/PE/PE Breathable Film/NY（15-100um）/Paper（30-200g/m2）.
