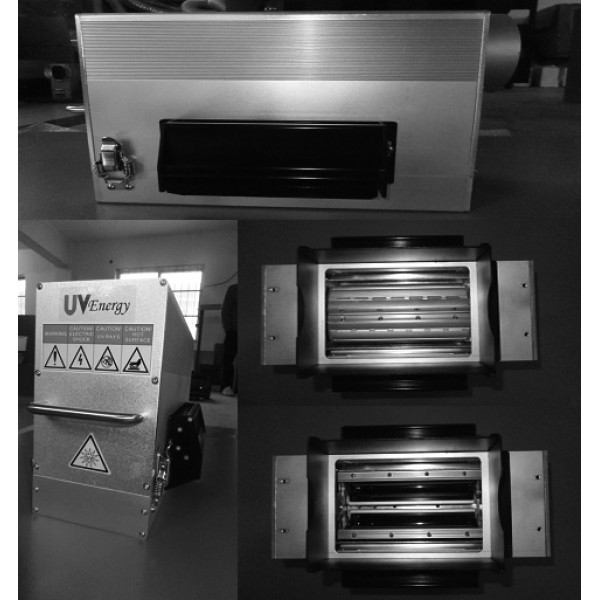

FEATURES OF UV CURING SYSTEM FOR WEB PRESS
High power output up to 600/inch.
Curing width available from 150-1500mm.
UV power auto adjustment to suitc the speed of the web press.
Available for lower temperature design of air/water UV curing type.
|
MODEL
|
SH501RB
|
SH751RB
|
SH1001RB
|
SH1201BG
|
LAMP
|
5KW
|
7.5KW
|
10KW
|
12KW
|
|
LAMP ARC
|
270mm
|
350mm
|
460mm
|
508mm
|
UV LAMP
|
5KW*1PCS
|
7.5KW*1PCS
|
10KW*1PCS
|
12KW*1PCS
|
POWER SOURCE
|
220V/380V
(50/60HZ)
|
220V/380V
(50/60HZ)
|
220V/380V
(50/60HZ)
|
220V/380V
(50/60HZ)
|
|
DIMENSION
|
According to customer printer design
|
Excellent performance of UV energy flexo printing system
(1)High power output can reach as high as 600 w/inch.
(2)All kinds of mixed UV systems with drying width of 150 mm to 1500 mm can be produced.
(3) It can automatically abate shading by cooperating with the movement of the machine.
(4)It can make water-cooled low temperature system of gas with low temperature.
This equipment can be adapted according to the demand for mercury lamp and halogen lamp.
1.Technical performance:
(1)Stepless variable control of the lamp output intensity tunable controls lamp output intensity of 10% -100%.
(2)Each lamp output strength can be controlled separately.
(3)In standby time all UV lamp output intensity are 10%.
2.Power characteristics: high-functioning for 98%, high efficiency for 92%.
3.Irradiation device control: can carry on switch action of illuminator shutter and the dimming function of shutter open and close linkage.
Shunzhe (shanghai) Mechanical & Electrical Technology CO.,LTD is specialized in manufacturing, sales and service of ultraviolet, infrared light-cured and hot wind drying equipment. The company insists on the corporate spirit of “Quality First, Service First and Customer Foremost”, as well as the quality principle of “Superior Quality, Reasonable Price, Considerate Service, Customer Satisfaction”, and continuously provides excellent products and services for our customers. At present, the company is constantly growing, and gaining economic benefits, with products exported worldwide. We uphold the operation principle of “Focusing on Quality, Based on Technology, Bridged by Service", and expect to cooperate with you sincerely, and jointly promote the development of printing industry!
