Teckut CNC Routers

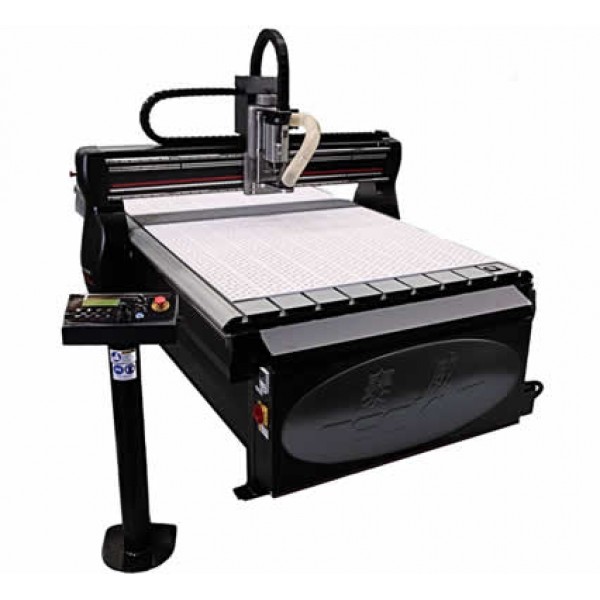

Introducing Teckut CNC Routers
Whether you’re working with plastics, metals, woods or composites, whether you’re designing a one-of-a-kind masterpiece or duplicating thousands of component parts, the Teckut CNC Router can handle the job.

The Teckut CNC Router combines advanced CNC technology, easy to use control interfaces, and an extensive range of features into a turnkey router that is extremely affordable. Factory-trained Field Service Engineers are available around the world to provide installation, on-site support or to answer application questions.

If you have a special requirement, let us know. Our team of professionals will put together a solution tailored specifically to your needs.
Features
Powerful 8Kw HSD Spindle Motor
Auto Tool Change
Digital Servo/Ballscrew Drive Systems
High Performance Vacuum Bed
Accurate Auto Tool Length Sensing
Easy To Operate Controls
Professional Productivity
RockSolid Reliability

Model Name	Teckut 1525	Teckut 2030
Overall Size	L 3800 x W 2300 x H 2100 (mm)	L 4350 x W 2820 x H 2100 (mm)
Process Area	X 2500 x Y 1539 x Z 140 (mm)	X 3100 x Y 2058 x Z 140 (mm)
Router Bed	High pressure vacuum;   Extruded aluminum slats;   Vacuum control valves; Cut to Mask
Spindle	HSD 7.5 kW;   24,000RPM  Traverse Feed rate: 0‐400mm/Sec
Console	Stand‐alone Podium; Joystick; LCD panel;
Teckwin Tools	Cut and Crease Wheel;   Reciprocating Knife;  Straight Drag Knife;   45°Drag Knife;  All use ISO30 Tool holder
Teckwin   Toolholder	Designed for Dust Extraction Foot;  Use ER32 Collet;
Power Supply	AC 380 V, 3 phases,   50/60 Hz, 25kW, 52A	AC 380 V, 3 phases,   50/60 Hz, 30kW, 64A
Dust Extractor	1kW/2kW connect interface reserved for customer;  With automatic start; Pneumatic Dust Foot at the Tool Bit;
Automatic   Tool Change	7 position	10 position
Air Supply	340 Liters/Minute (12 CFM), 6‐7Bar (100PSI) for Pneumatics
Cut Registration	Pneumatic Pop‐up Bed Pins;   Cut‐to‐Print Digital Camera System;  Automatic Tool Length Sensing
Vacuum Hold Down	Side Channel Pump   7.5KW	Side Channel Pump    7.5KW x 2
Workstation	Intel Core2 E6500, 2G Memory, 320G HD DVD‐ROM, Windows XP or Windows 7
Software	ProfileLab 2D (Architecture open to other software )
Net Weight	1250kg	1850kg
