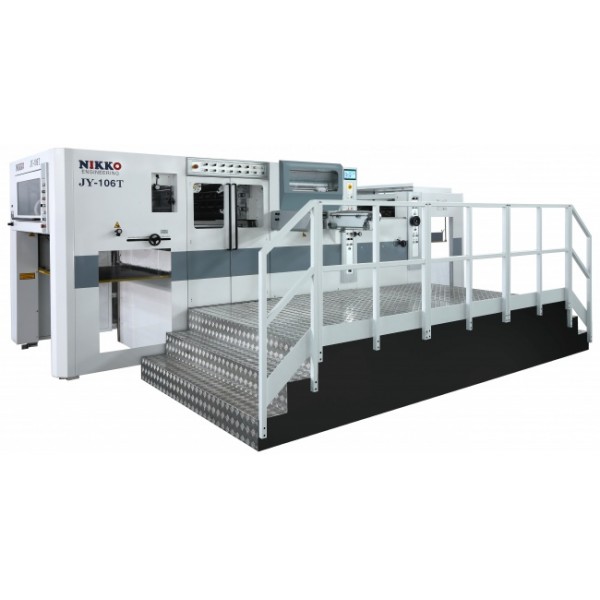

JY 106T Automatic Diecutting and Foil Stamping machine

JY 106T Automatic Diecutting and Foil Stamping machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2016-02-01
Add to My Favorites Add to Inquiry Basket
Seller Information
Shanghai Yoco Printing Machinery Co., Ltd
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile
JY-106T Specification



Maximum sheet size : 1060x750mm

Minimum sheet size : 450x380mm

Maximum cutting size : 1040x720mm

Maximum stamping size : 1040x730mm

Inside chase size : 1120x760mm

Minimum gripper margin : 8mm

Maximum pressure : 300 tons

Sheet thickness : 80g/m2 up to 5mm B flute corrugated paper

Maximum diecutting speed : 7500 sheets/hour

Maximum stamping speed : 6500 sheets/hour

Heating zone : 12 zones

Foil feeding devices : 3 longitudinal 2 transversal

* vertical and horizontal format are available for longitudinal foil feeding unit

Maximum foil roll (diameter) : transversal 200mm; longitudinal foil feeding in 2 formats:    a) horizontal 250mm; or b)vertical 330mm

Maximum pile height at feeder : 1600mm

Maximum pile height at delivery : 1350mm

Total power : diecutting  22kw; stamping 60kw

Machine size (incl. platform) : L5910xW4262XH2950mm

Weight : 18.5 tons
