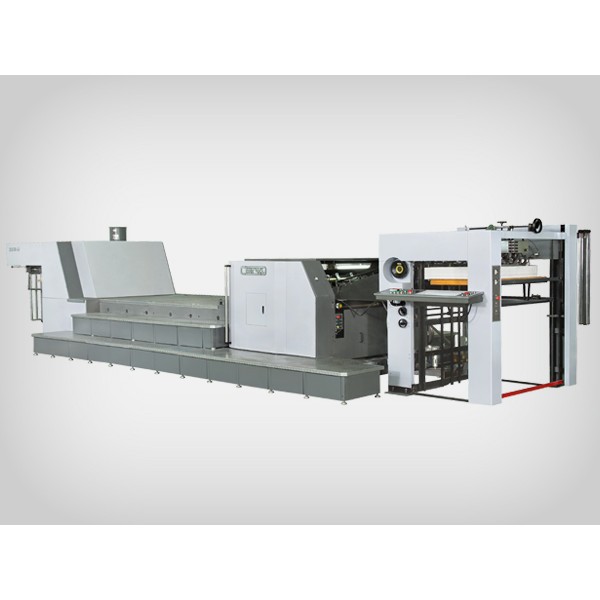

ZMG104 Flexographic Spot Coating Machine

ZMG104 Flexographic Spot Coating Machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2016-02-02
Add to My Favorites Add to Inquiry Basket
Seller Information
Shanghai Clarity Printing Machinery Co., Ltd.
China
Business type: Individual User
Contact Seller
Contact Now
Product Detail Company Profile
As a new generation of glazing machine series recently launched by Shanghai Clarity Machinery Co., LTD, the ZMG104 flexographic glazing machine series apply anilox roller to oil, serving for solid plate glazing and partial glazing, with glazing speed as high as 8000 sheets / h. Customers may select either UV glazing or waterborne glazing as per requirements of print to get excellent glazing results.
The machine is applicable to ornament of the print with different thickness as large as 720x1040mm, oiling by anilox roller, features even glazing layer, high gloss etc. Thanks to the preciseness of partial glazing and overprinting, the print will turn out to be brighter and fresher in color with characterized as antiwear, dampproof, heat-resistant and anticorrosive.

The machine has been certified by CE.

Flexographic Spot Coating Machine

Machine Spec.

Max. Sheet Size             720×1040mm

Min. Sheet Size             390×540mm

Max. Printing Area          710×1040mm

Max. Printing Speed         8000sph

Sheet Thickness             0.10~0.60mm

Feeder Stacking Capacity:       1150mm

Delivery Stacking Capacity:     1100mm

Main Motor Power          7.5kw

Machine Power             17kw

DimensionsL×W×H):     7270×3400×2100mm



Features

1. Frequency Conversion Stepless Speed Regulation; PLC control; Air Clutch

2. Anilox Roller & Chambered Doctor Blade Adopted; Coating Glossy and Well-distributed

3. Sliding Coating System with Good Rigidity and Enough Space for Operation

4. Non-stop Feeder & Delivery

5. Drop-down Conveyor Belt Prevents Burns and Enhances Security

6. UV Oil Temperature-Controlled Preheating and Circulatory Delivering Devices; Electrical Pump Standard and Diaphragm Pump For Option

7. Multiple Optional Devices:

Enhanced UV Curing System

Enhanced IR Dryer

Hot Wind Dryer

Extension Tunnel

Anti-curl Device
