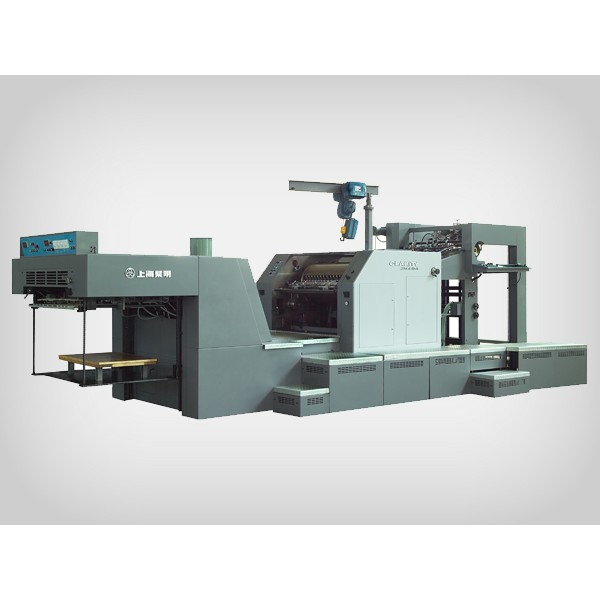

ZMA94 Sheet-fed Gravure Press

ZMA94 Sheet-fed Gravure Press

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2016-02-02
Add to My Favorites Add to Inquiry Basket
Seller Information
Shanghai Clarity Printing Machinery Co., Ltd.
China
Business type: Individual User
Contact Seller
Contact Now
Product Detail Company Profile

ZMA94 Sheet-fed Gravure Press:This press is an automatic gravure press with excellent performance, easy operation, stable and reliable quality. It also can varnish sheet with varnishing oil. This press has the advantages of multi-type and short run jobs. It can combine together with the printing technologies of offset printing, flexographic printing and process printing. This model is suitable for printing exquisite packaging, decoration prints, alcohol label, cigarette label, cosmetics box, etc

Sheet-fed Gravure Machine
Machine Spec.
Max. Sheet Size:             650×940mm
Min. Sheet Size:              393×546mm
Max. Printing Area:           630×940mm
Max. Printing Speed:          10000sph
Sheet Thickness:             0.07~0.45mm
Feeder Stacking Capacity:      1500mm
Delivery Stacking Capacity:     1000mm
Main Motor Power:            7.5kw
Machine Power:             43kw
Dimensions(L×W×H):    7200×3600×2700mm
Weight:                    9100kg

Features
1. Patented Underside Feeding Swing Arm; Underside Front Lay
2. Heidelberg-type Feeder of 1500mm Stacking Capacity; Non-stop Feeder and Delivery
3. Patented Plate Cylinder Loading Mechanism
4. Double Size Delivery Cylinder with Patented Anti-smearing Device
5. Air Clutch for Cylinders and Scraping Blade
6. Electric Ink Pump Driven by Explosion-proof Motor
7. Double Size Impression Cylinder
8. Centralized Automatic Lubricating System
9. Hot Wind and IR Drying for High Printing Speed; UV Curing System Optional
