USE&FEATURE:

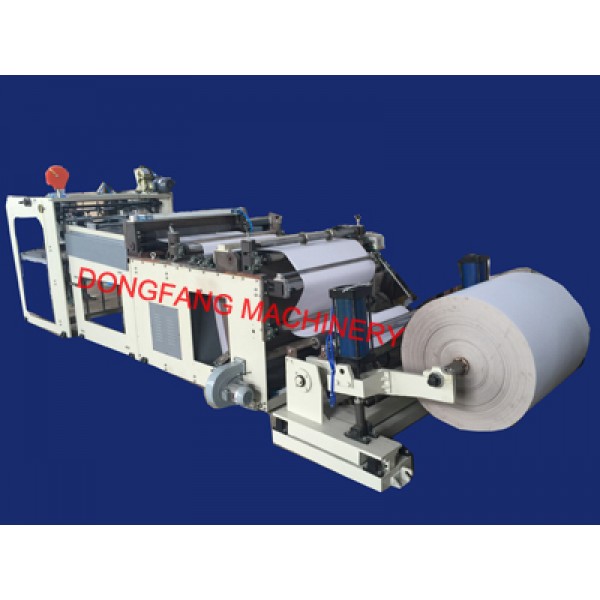

This machine is adopted to vertical cut and horizontal cut of the color printing complex film and paper rolling materials.The workable paper thickness is from 50-700gsm, With the machine,power,liquid,gas together, it has the features of synchronous generator (or actuating motor) controlling fixed length cut, electrooptical system tracing modification, rolling material hydraulic power hoist,operating platform automatic ascent and descent, automatic paper arrangement, high precision and easy operation,etc.
Main Technical Parameters:
|
Max.cutting width
|
600~1600mm
|
|
Max.Unwinding Diameter
|
1500mm
|
|
Cutting Length
|
20-1999mm
|
|
Precision
|
≤±0.15mm
|
|
Production Speed
|
20-130m/min
|
|
Weight
|
2200-6800(kg)
|
|
Overall Dimension
|
7500*1600-2900*1800(mm) (for reference)
|
|
