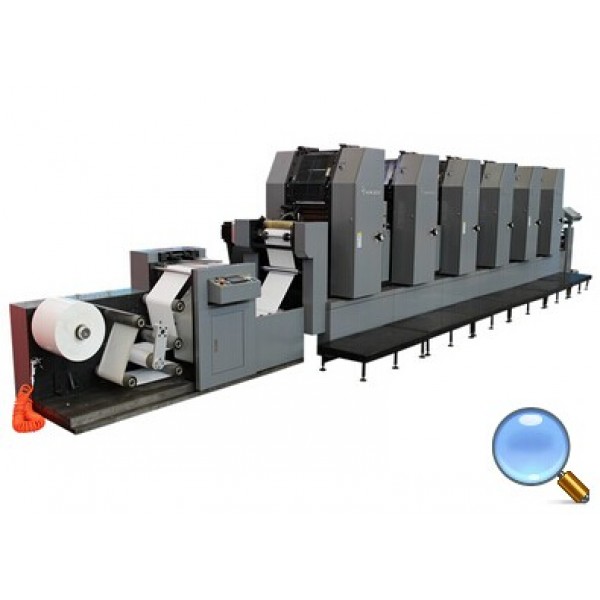

Label printing machine WIN B33

Label printing machine WIN B33

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2016-04-01
Add to My Favorites Add to Inquiry Basket
Seller Information
Weihai Printing Machinery Co.,Ltd.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Max. Paper size (mm) 330
Paper thickness (mm) 0.04~0.4
Max. Printing area W×L(mm) 315×350
Printing speed (times/min) 180
Plate size (mm) 320×400
Plate thickness (mm) 0.15
Blanket size (mm) 338×437×1.9
Under blanket size (mm) 315×389×0.6
Feeding system Intermittence type feeder
Max diameter (mm) 600
Delivery system Automatism servo system delivery
Number of rollers Ink rollers :17 Water rollers:4
Vertical image adjustment range (mm) ±20
Vertical image micro adjustment range (mm) ±1
Lateral image micro adjustment range (mm) ±2
Declining images micro adjustment range (mm) ±0.10(Max. printing area)
Oiling system Centralized oiling system
Power 3 Phase 380V 50Hz
Wattage rating (Kw) 70
Dimensions L×W×H (mm) 10060×1600×1780
Net weight (Kg) 18000(6 color)
