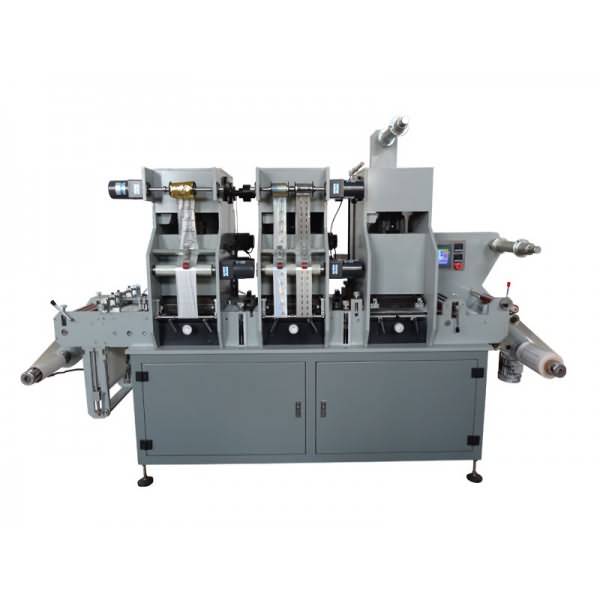

MYG-320 Label Hot Stamping and Die Cutting Machine

MYG-320 Label Hot Stamping and Die Cutting Machine

Price:
Get Latest Price
Brand:
Kingsun
Video:
Validity:
Permanent
Date:
2016-04-20
Add to My Favorites Add to Inquiry Basket
Seller Information
Wenzhou Kingsun Machinery Industrial Co.,ltd
Zhejiang China
Business type: Manufacturer
Onsite operations checked and legal status confirmed
Contact Seller
Contact Now
Product Detail Company Profile

MYG-320 Label Hot Stamping and Die Cutting Machine

This machine is suitable for foil stamping and die cutting adhesive label, film label and hologram label etc, this machine is for hot stamping and die cutting at one process.

Features:

1.Feeding system use AC servo motor

2.Use AC frequency converter

3.PID automatic thermostatically control

4.Imported holographic positioning sensor

Main specifications

Stamping cutting area

320x250mm

Max paper width

340mm

Max. unwinding diameter

500mm

Max. rewinding diameter

500mm

Speed

1200-10000stamps/H

Foil size

Ø180 ID=25/76mm

Position precision

±0.15mm

Foil feeding shaft

2 shafts

Main motor power

2.2kw

Whole machine power

4.5kw/280V

Overall dimensions

2300X800X1850mm

Weight

About 1500kg
