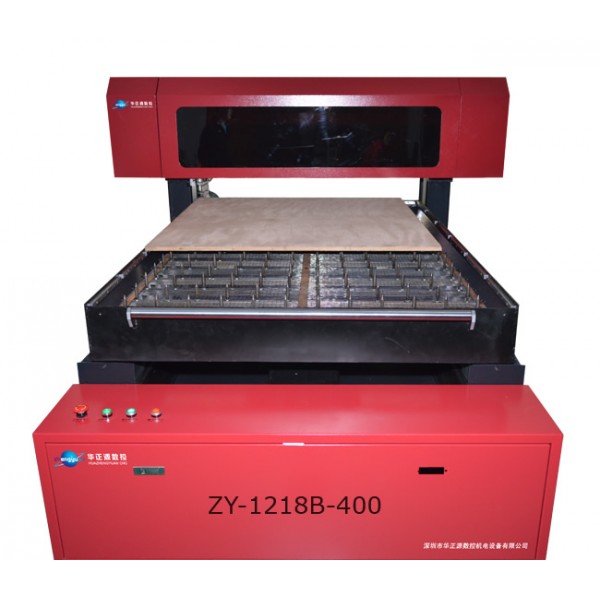

ZY1218-400W Laser cutting machine

ZY1218-400W Laser cutting machine

Price:
Get Latest Price
Brand:
szzhengyuan
Validity:
Permanent
Date:
2016-05-09
Add to My Favorites Add to Inquiry Basket
Seller Information
Shenzhen Huazhengyuan CNC Mechanical & Electrical Equipment
Guangdong China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Item No.

ZY1218-400W

ZY1218-300W(GSI)

Out put power

400W

300W

Laser tube

Sealed-off CO2 laser tube

GSI La ser tube

X-axis travel-length

1200mm

1200mm

Y-axis travel-length

1800mm

1800mm

positioning precision

±0.03mm/m

±0.03mm/m

Max speed of position

7mm/s

7mm/s

Control system

Motion card PMAC

Motion card PMAC

Transmission system

Ball screw&linear Guide

Ball screw&linear Guide

Driving system

2 Axial servo

2 Axial servo

Moving structure

Gantry

Gantry

Chiller system

Water chiller system 1.5P

Water chiller system 1.5P

Overall dimensions(L*W*H)

3660mm*2200mm*1800mm

3660mm*2200mm*1800mm

Weight

1500KG

1500KG

Machine structure

Open plan

Open plan

Power supply

220V/50HZ/60A

220V/50HZ/60A
