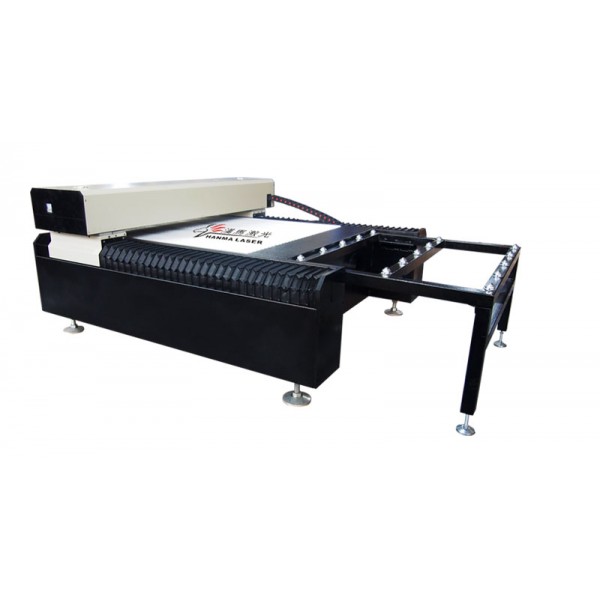

Model J1313,Laser Cutting Machine for both metal and nonmetal

Model J1313,Laser Cutting Machine for both metal and nonmetal

Price:
Get Latest Price
Brand:
chineselaser
Validity:
Permanent
Date:
2016-05-10
Add to My Favorites Add to Inquiry Basket
Seller Information
Guangzhou HanMa Automation Control Equipment Co. Ltd
Guangdong China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile
Main configuration
 *  Metal cutting following system
 *  Fixed beam optical laser system
 *  High precision Stepper motor
 *  Imported ball screw and guide rail
 *  Touch screen controlling system
    *    Industrial chiller

Technology Parameter
Laser power : 150W Reci Co2 Laser tube
Working Area :1300*1300mm
Positing accuracy :±0.05mm
Positing speed :20000mm/min
Power supply : 220V±10%/  50/60Hz  10A
Gross power : <3000w
Gross weight : 500KG
Cooling mode : Water cooling
Supported Software : CAD / CorelDraw
Graphic format support : BMP/ PCX/ AI/ TIFF/ PLT/ CDR/ DWG/ DXF
Interface : USB/ RJ45/ U disk
Driving motor : High speed stepper motor
Transmitting mode : Imported ball screw and linear guide rail
Lens and Mirror : Imported from Singapore
Auxiliary equipment : Industry Chiller/ Exhausting kit/ Air pump
Auxiliary gas : Oxygen is needed for metal cutting only
Cutting Capability: Stainless Steel≤3mm
                    Wood or MDF  ≤10mm
                    Acrylic/PMMA  ≤30mm
