Function indication:

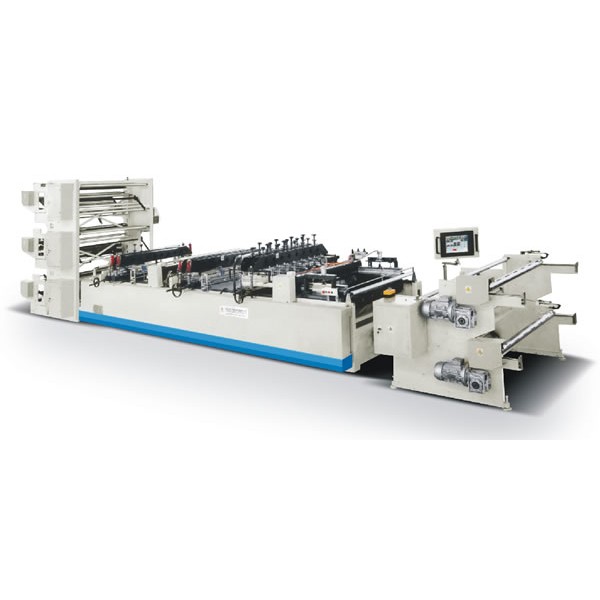

ZKZD-1300 air inflation film bag-making machine is designed for the modern air inflation packing of 21 st century. This is a new generation exclusive bag-making machine, equipped with advanced PLC control system and quality/ high-efficiency main machine digital AC servo system to provide instant parameter display through FTF man/machine interface.
Feeding：1.5kw×2=3kw
Main engine：4kw×1=4kw
Unwind：0.55kw×3=1.65kw
Vertical seal：3kw×8=24kw
Lateral seal：3kw×6=18kw
Control system etc.：2kw
Total：52.65kw
Cooling water：15L/min
Gas pressure：0.6Mpa
Weight：about6000kg
Dimension(L×W×H)：9910×2000×2380mm
Technical Data:
Film:All kind of laminated hot seal film
Roll size：
Max. Width：1250mm；
Max. diameter：φ600mm(up, middle, low three layer)
Bagging speed：100parts/min (Machanical design speed)
Note：The actual operation speed will reduce for the reason of the bag tpe and material
Bagging Max. Width：1200mm
