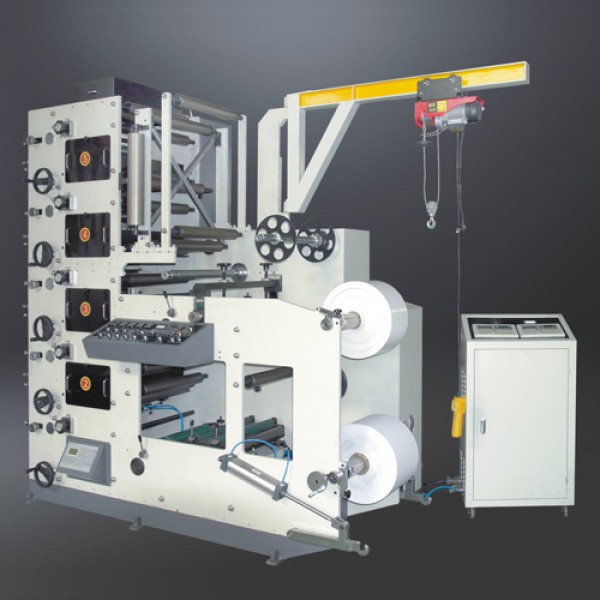

Characteristics：
1、The main motor adopts imported converter to govern to govern in a stepples way.
2、Feeding and discharging are controlled through magnetic powder brake and clutch(Japanese aut tension controller).
3、Unwinder system is controlled by auto-rectify sensor.
4、Adopt ceramic mesh distributor roller,which is characterized by durability,wear resistance,and corrosion resistance.The doctors can be Used,which is more efficient for reducing the times for changing in order to increase the production efficiency.
5、The printing unit can register in 360 degrees.Each printing unit can indepen dently gear and loosen to have the units continue printing.
6、The printing units are equipped with a group of infrared dryers redpectively.
7、Each IR dryer device of printing unit can interchange of Uv dryer device.
8、The rooling devic is adopted clipping device qith air-expansion core shaft.
9、THe inking roller can aotomatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10、The roll feeding, printing,polishing,aoto infrared drying,laminating and rolling can be processed in one processing.It is characterized by wide application,non-population of printing ink and fast drying,quick printing.So it is an ideal printing machine for the commercial bill to print high-Graded free adhesive trademark.
MAIN TECHNICAL SPECIFICATION:
|
Model
|
RY-330
|
RY-470
|
|
Feeding width
|
330mm
|
470mm
|
|
Printing width
|
320mm
|
460mm
|
|
Printing repeat
|
175-350 mm/min
|
175-350 mm/min
|
|
Max.unwind diameter
|
600 mm
|
600 mm
|
|
Max.Rewind diameter
|
550 mm
|
550 mm
|
|
Printing spead
|
60m/min
|
60m/min
|
|
Printing color
|
1-6
|
1-6
|
|
Accuracy of Registration
|
± 0.1mm
|
± 0.1mm
|
|
Die-cutting stations No.
|
3
|
3
|
|
Machine weight
|
2500KG
|
2800KG
|
|
Overall Dimensions
|
3000*1500*3000mm
|
3000*1500*3000mm
|
|
Wenzhou Hailin Packaging Machinery Co.,ltd.(Ruian Weilong Packaging Machinery Factory) is a joint enterprise specialized in manufacturing Printing and Packaging machinery. With more than 10 years working experience, advanced and mature processing, reliable and stable quality, Weilong becomes the professional enterprise in making foil-stamping and die-cutting machine, automatic uv flexographic printing machine. It has also got ISO9001: 2000 quality administration system authentication in April 2002..
Focusing on direction of highest international advance technique, Weilong insists the principle that the quality is foundation and scientific technique is forerunner. It continuously exploits and innovates in developing high quality optical mechatronics products. Such as foil-stamping & die-cutting machine, creasing and cutting machine, automatic uv flexographic printing machine, adhesive label(logo)die-cutting machine, automatic slitting machine etc. Total five series of products system. With positive, faithful managing conception and excellent quality and service, Weilong´s products are wide sold in domestic market and 50% are exported Europe, Africa, South East Asia, Hong Kong and Macao.
\"Quality is gold, Service is heart\" is Weilong´s persistent tenet. Accompanied China joined WTO, Weilong insists to fulfill the market´s demand with its highest quality products and its most excellent service. And hope to establish good relationshipin cooperation with customers home and abroad and create resplendence in 21 century together.
