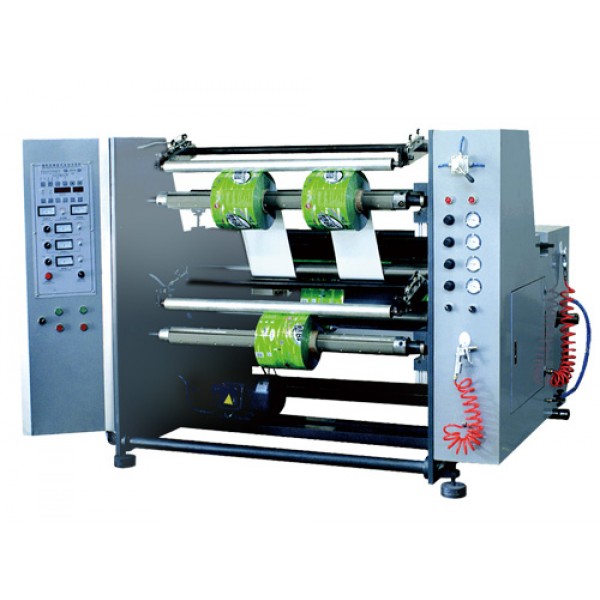

BY B700 1300 based computer control Slitter

BY B700 1300 based computer control Slitter

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2016-05-17
Add to My Favorites Add to Inquiry Basket
Seller Information
Ruian City RUIJIA Packing Machinery Factory
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile
Usage: 1. This machine is suitable for slitting PET, OPP, PVC, PAPER and other materials in rolls.
Performance and Features:
1. This machine is a kind of horizontal slitting&rewinding machine.
2. Computer control system, more flexible and easier operation.
3. Applying 3-phase asynchrony-motor, with frequency converter for speed regulation.
4. Automatic EPC for unwinding with synchron-motor, with photo electric trace, the line-bearings can reach at 120mm.
5. Straight knives and round knives to slit.
6. Waste treating device.
7. Double level rotary type air shafts with magnectic powder for rewinding, it is ok to operate by single person.
8. Automatic meter counting device, calculating automatically.

Model
BY-B700
BY-B1100
BY-B1300
Max.Width of Mother Roll
700mm
1100mm
1300mm
Max.Dia.of Unwinding
Ф700mm
Ф700mm
Ф700mm
Max.Dia of Rewinding
Ф500mm
Ф500mm
Ф500mm
Speed
0-150
0-150
0-150
Width of Final Roll
30-700
30-700
30-700
Total Power
2.2kw
3kw
4kw
Weight of Machine
1000kg
1200kg
1500kg
Overall Dimension
2000×1800×1300mm
2000×2200×1300mm
2000×2400×1300mm
