Performance and Characteristics:

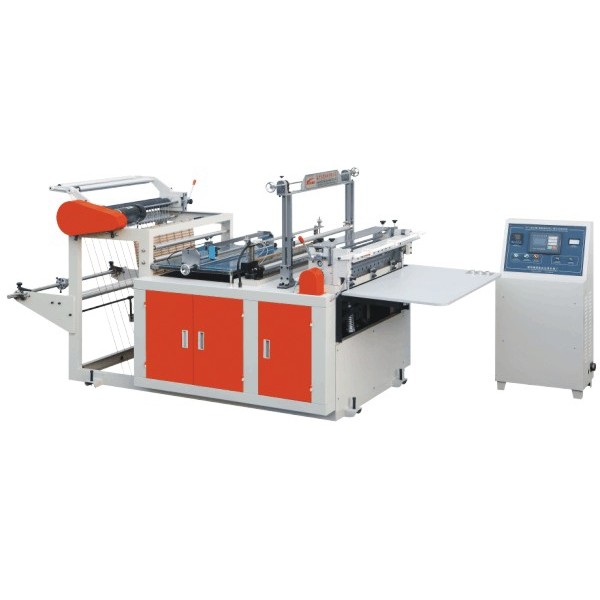

XD-DFR Series Bag Making Machine, PP, PE and other plastic materials, production equipment bag vest bag (vest bag). Among
XD-DFR-600 type computer heat sealing bag making machine, bag cutting high temperature cut in the original heat sealing line while adding a high-temperature melting tangent
(Also known as line of protection), making it a more solid bag, single-chip microcomputer as the master, the stepper motor fixed length, so that the whole stable,
And the bag of high precision, is the ideal equipment for making flat bag and vest bag (Maga bag).
Product parameters:
Model XD-DFR-600 XD-DFR-800
Max cutting width 550mm 750mm
Sealing and Cutting Length 100-999mm 100-999mm
Sealing and Cutting Thickness 0.008-0.025mm 0.008-0.025mm
Length error of ± 1mm ± 1mm
Bag-making speed 40-110pcs / m 40-110pcs / m
Host Power 0.8KW 1.1KW
Heating power 1.8kw 2.2kw
Total power 2.8kw 3.5kw
Machine weight 800kg 1000kg
Overall dimensions 3000 * 1100 * 1500mm 3000 * 1300 * 1500mm
Omron
Pneumatic components
Leier Da
Commonly used in electrical components / Switch
Chint Group
Inverter
Bei Shide
Variable frequency motor
Shanghai super power
Computer part
Display
Microsoft Taiwan
We are a manufacturer specializing in producing printing machines, bag making machines, non-woven fabric bag making machines and film blowing machines. Our factory integrates scientific research, production, marketing and service and we have complete and perfect processing equipment.
Our company is based on quality and guided by science and technology. We regard internationally advanced level of paper cutters as the code of conduct. In order to meet the rapid developing market requirements, we are making innovations to take advantages of ourselves, developing high performance and high quality series of paper cutters that are light, mechanical, electric and hydraulic. Our products are well appreciated by users.
We are looking forward to building business relationships with all friends from all over the world.
