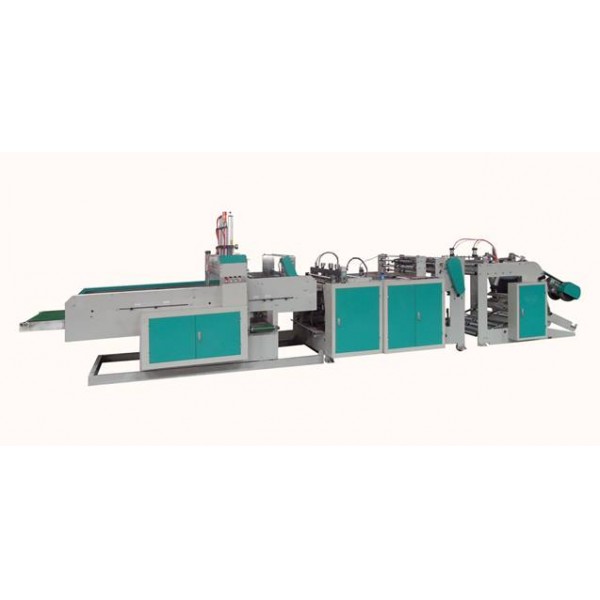

Use: It is suitable for hot sealing and cutting both monochrome and color plastic film, which make of HDPE, LDPE.
Featrue:
1. Especially designed for hot sealing and cutting of T-shirt bag. It can be punched automaticaly in two production line which will increase the production and save the manpower.
2. Double track designs, double production lines, double photo scanners, double servo motors.
3. Photocell for accurate registration of film printing points if the photocell can't catch printing point the machine will stop automatically.
4. Inverter control speed, easy operation, reduce electric consumption.
5. Automatic stopping when run out of film.
6. When the output bags reach the setting number, the punch machine will clamp the bags, without stop.
7. New designed sealing blade, when blade need be cleared up, it can be turned
180° And fixed. It will be safe and easy to take care.
8. Strong sealing and output bags being tear up neatly.
9. Punching machine use air and liquid pressurized cylinder, so the noise is low and the gas consumption is little.
The main Technical Parameters:
Model：GDFR-400*2
Max. Bag width: 350mm*2
Producing length: 360-600mm
Producing speed: 100-220 circle /min
Film thickness: 0.010-0.035mm
Main motor: 2.2Kw
Main power: 10Kw
Air Pressure:7kg/cm2;700Ni/min
Max.Dia.for unwinding roller:800mm
Machine Weight:2300kg
Overall dimension (L*W*H) :6600*1550*1900mm
Packingdimension(L*W*H) :2150*1600*1550mm;
2300*1510*2100mm;
1940*1480*1430mm
Ruian ling feng plastic packaging machinery factory is located in the east China sea coast of zhejiang Ryan, beautiful scenery, convenient transportation.
Ling feng machinery has more than ten years manufacturing experience, is a professional development, development, production of various plastic film bag making machine.Enterprises learn advanced experience at home and abroad in recent years, on the basis of optimization design, to develop the high grade of plastic film computer control automatic double vest bag bag making machine, sealing machine, roll machine, edge sealing plastic film glove machine, product quality and technical supervision and inspection institute, the technical performance indicators are in line with the industry standard.
\"Reliable quality, considerate service\" is the ling feng machinery to success, continuous pursuit of technological innovation, strict quality management, control precision parts manufacturing, assembly, ensure the machine running stability and prolong service life, ling feng machinery efforts to create a user\'s most trusted bag making machine in the world, do not need to run everywhere, ling feng machinery to meet customer requirements at any time.
