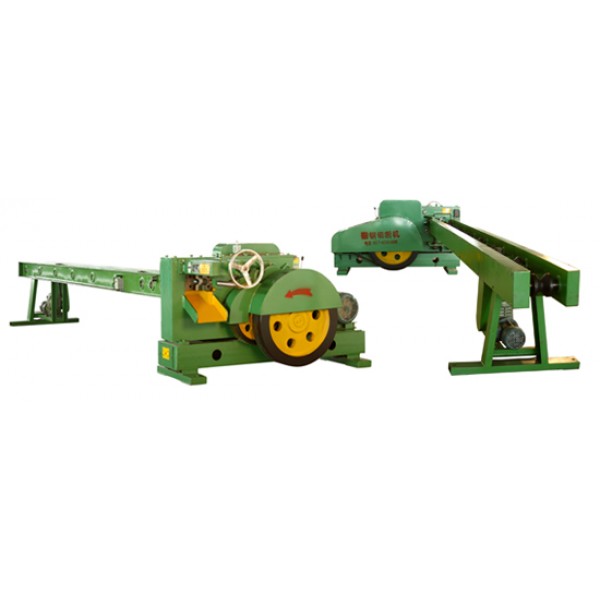

Uses and Features: This model is a widely used, simple structure, easy to round off machine; the model of the body is welded with steel plate, making the model more robust. How it works: the use of three-phase induction motor drives the eccentric shaft rotation, led by the eccentric rotation axis connecting rod, connecting rod to drive even the seat, even the seat edge will be driven by dynamic simulation; scheduled to die by the knife-edge tighten the bolts in the body; stick frame by feeding material into the discharge port, due to the dynamic simulation of transverse shear blade has been cut. In addition, the model also has a thimble body, which can precisely control the length of material cut (mm). Cut the bar with the model can reduce processing costs, improve production efficiency, high precision machining. |
YQ35 | YQ45 | YQ60 | YQ70 | YQ80 | YQ90 | YQ100 | YQ110 | ||
Maximum shear force KN | 50 | 65 | 160 | 210 | 315 | 450 | 500 | 630 | |
Cut the biggest diameter mm | φ10-φ35 | φ10-φ45 | φ15-φ60 | φ20-φ70 | φ25-φ80 | φ30-φ90 | φ30-φ100 | φ30-φ110 | |
Shear rate m/min | 42 | 36 | 30 | 25 | 20 | 20 | 16 | 13 | |
Travel s/min | 52 | 60 | 70 | 80 | 90 | 104 | 95 | 110 | |
Gauge range mm | 32-200 | 45-250 | 52-250 | 52-250 | 52-250 | 52-250 | 52-250 | 52-350 | |
Section tilt | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
Cross-section roundness | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 | 0.92 | |
Cut weight error g | ±5 | ±8 | ±10 | ±12 | ±15 | ±20 | ±20 | ±15 | |
Main motor | Model | Y132S-4 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y225M-6 | Y250M-6 | Y250M-6 |
Power KW | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | |
Host size |
1750*1200 *950 |
2000*1200 *960 |
2100*1400 *1150 |
2270*1500 *1420 |
2700*1500 *1420 |
2800*1600 *1650 |
3000*1600 *1550 |
3200*1650 *1700 |
|
Feeder | Model | Y90S-4 | 90L-4 | 90L-4 | 90L-4 | Y100L1-4 | Y1112M-6 | Y1112M-6 | Y1112M-6 |
Powerkw | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | |
Size |
4600*850 *590 |
5100*1000 *750 |
5100*1000 *880 |
5100*1000 *990 |
5100*1000 *1010 |
5100*1000 *1010 |
5100*1000 *1070 |
5500*1000 *1130 |
|
Reducer | Model | WPDA80 | WPDA100 | WPDA100 | WPDA100 | WPDA120 | WPDA135 | WPDA120 | WPDA135 |
Ratio | 1:15 | 1:15 | 1:15 | 1:15 | 1:15 | 1:15 | 1:15 | 1:25 | |
Manual feeding rack dimensions |
4200*1000 *755 |
4200*1000 *755 |
4600*1000 *875 |
4600*1000 *840 |
4600*1000 *1000 |
4600*1000 *1000 |
4600*1000 *1030 |
4600*1100 *1150 |
