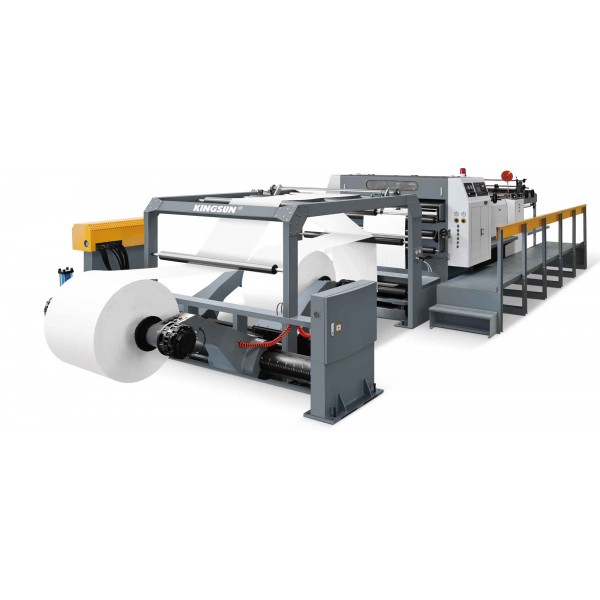

KSM-1400 Double
Rotary Knife Paper Sheeter Machine.
The
KSM series Servo Control Precision High Speed Double Rotary Knife Paper Sheeter Machine can efficiently complete
slitting, trimming and sheet cutting of roll paper, as well as maintaining the
highest precision and product quality. The KSM series paper roll sheeting
machines are well equipped and almost can adapt to all high requirements of paper
converting products.
Main Features:
(1)Adopt
steel plate-Q335, the mainframe wallboard has precision manufacturing and high
strength, thus will never-deformed.
(2)The
whole machine all uses SKF\\NSK Original imported bearings.
(3)The
whole machine uses original parts imported from France Schneider, Japanese
OMRON and Japanese SMC, etc.
(4)The
conveyor belt is imported from Japan.
(5)The
back cutter is adopt Germany Ni-Cr-Mo metal steel, with high precision and will
never- deforms; the knife edge is easy to adjust and calibrate.
(6)Use
the automatic angle-aligning system to realize fast angle aligning of
worksheet.
(7)Equipped
with anti-curve automatic regulation device, ensure fast and smooth when
adjustment of anti-curved paper.
(8)Paper
feeding part adopts pre-pressing device, to ensure that the paper is not
wrinkled.
(9)Equipped
with touch-screen operation interface in both Chinese and English.
(10)All
adopt Taiwan AIRTAC\'s pneumatic components to ensure every pneumatic action
performs accurately.
Technical specifications:
|
Model
|
KSM-1100/1400/1700/1900
|
|
Model
of cutting paper
|
Double
rotary knife
|
|
Thickness
of cutting paper
|
60-1000GSM
|
|
Max.
unwinding diameter
|
1500mm
|
|
Max.
paper cutting width
|
1100mm(45\")/1400mm(55\")/1700mm(67\")/1900mm(75\")
|
|
Cutting length width
|
450-1600MM
|
|
Format
of sheeting
|
2
sheets
|
|
Cutting precision
|
Cutting
length 1000mm : ±0.2mm
Cutting length ＞1000mm: ±0.1%
|
|
Max. cutting speed
|
300
cuts/min
|
|
Max. cutting line speed
|
300
sheets/min
|
|
Max. paper piling height
|
1300mm(KSM-1100)
1500mm(KSM-1400/1700/1900)
|
|
Request of air compressor
|
0.8Mpa
|
|
Power consumption
|
380V/220VⅩ50Hz
|
|
Machine weight (G.W)
|
12000/16000/18000/20000KGS
|
