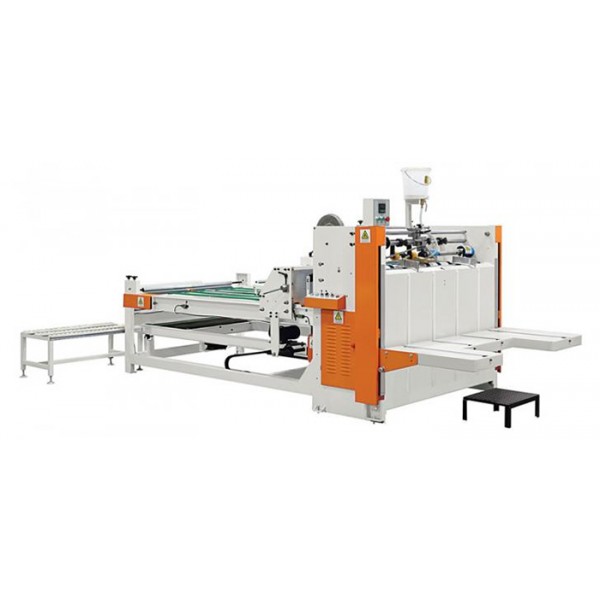

PL-ZX-2600 Semi-Auto Folder Gluer Machine

ModeL

	PL-ZX-2600 Semi-Auto Folder Gluer Machine
Max Feeding Size	2600*1500mm
Min Feeding Size	640*300mm
Feeding Height	1200mm
Stack Height	800mm
Speed	45m/min
Suitable Boards	3\5\7Plys Corrugated boards
Motor Power	2.5kw  380V  50HZ  3Phrase
Weight	2500kg
Over Size	4800*2000*2000mm

General Features 1.With Good and out-looking design, it is convenient and easy to operate, very practical. 2. With Electric Eye and sensor on Feeding table, automatically up and down, save the manual power. 3. Equipped with the automatically Side Patting device in the middle part, so it can glue tidy and no scissor cross. 4. The Baffle in the middle part and the stacker in the back are all electrical adjusted. With Synchronously Moving. 5. There is creasing and pressing device on the gluing unit, so it can be glued well and perfect position. 6. There is Number count sensor and PLC screen, you can set up the Strapping numbers , such as 1-20pcs/Bundle, Automatically output and easy for packing or Banding. 7. With Schneider Switches. The electrical eye and the sensor are using TaiWan Brand, durable and Stable, the main driving motor is the TaiWan Slow-down motor, the up and down motor and the gearbox \ Fans are Inland Top Quality brand. 8. From the half-down products to the finished products, binding or packing & Stacking etc just need two workers, easy operate and save manpower.
