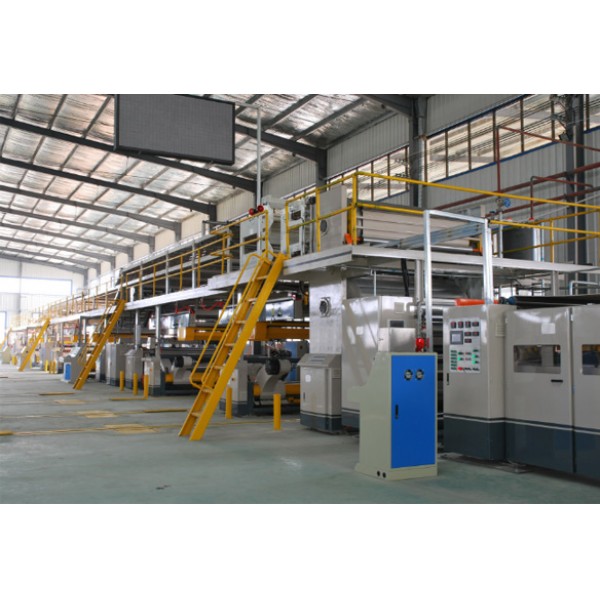

1. Paperboard max width: 1600mm
2. Design speed: 80m/min
3. Work speed: 60m/min(5ply); 70m/min(3ply)
Cardboard equipment temperature must remain above 172 degrees Celsius during operation
Base paper no less than B class
Moisture: 11%±2%
(1) face paper：100--250g/m2
(2) core paper：100--250g/m2
(3) flute paper：100--200g/m2
4. Flute style: C, B and custom flutes
5. Steam requirement
(1) steam volume 2500--3000Kg/Hr
(2) max pressure: 1.2Mpa
(3) popular pressure: 0.8-1.1Mpa
6. Power: According clients' needs
7. Machine total power: about 150KW
Actual electrical usage: about 80KW (total speed)
8. Ground area: about 60m×10m×5m
9. Paper discharge: according the buyer's workshop to left or right
10. Equipment use: can use A, B, C class China base paper or import base paper
(1) Steam suppler system, 2000Kg/Hr steam boiler pressure 1.25Mpa steam pipe
(2) Air compressor, air pipe, glue feeding pipe
(3) Power and wire connection to the worktable
(5) Machine trial base paper, corn starch, sodium hydroxide, borax
Hebei Jinguang Packing Machine Company is located in Cangzhou city in the Hebei province of China.
We have established ourselves as a trustworthy manufacturer of packing equipment that is used to
create packaging for any number of consumer products for our highly valued customers.
Our main products include multiple ply corrugated board lines, high speed printers, folding machines
and gluing machines. Our outstanding equipment can help you produce boxes in high volumes in
order to keep up with your production output with amazing reliability and control
We employ a highly talented international sales staff that is multilingual in order to fully satisfy the
demands of our customers all over the world. We do business is Russia, Egypt, Vietnam, India and
many other countries across the globe.
