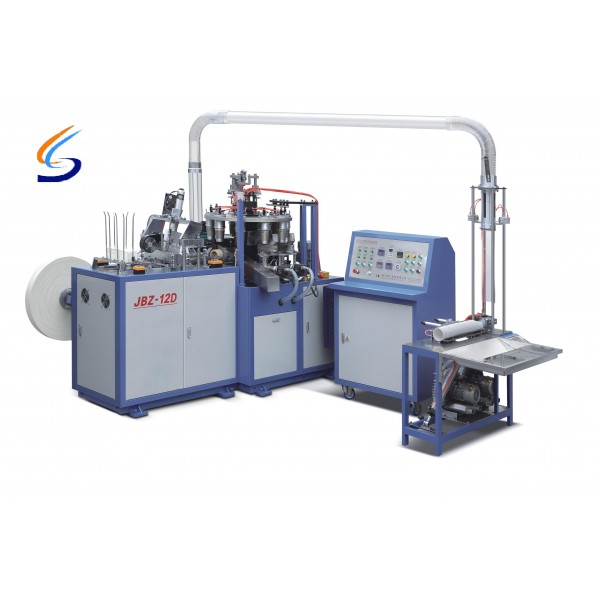

JBZ-12D Middle Speed Paper Cup Machine

JBZ-12D Middle Speed Paper Cup Machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2017-08-25
Add to My Favorites Add to Inquiry Basket
Seller Information
San (Qingdao) Machinery Co., Ltd.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile
JBZ-12D middle speed paper cup machine is developed based on our normal speed paper cup machine, the strength and stability was improved gradually.
The machine has functions of automatic lubrication, bottom punching, heating, knurling, rim curling and cup discharge. It can produce single or double side PE coated paper cups for beverage, coffee, ice cream etc.

Technical specification:
Model: JBZ-12D
Cup size: 6~12oz (Cup top diameter 70~90mm, bottom diameter 40~70mm, cup height 65~120mm, bottom folding height 5~10mm)
Raw material: 190~350gsm single or double side PE coated paper
Capacity: 60~70 cups/min
Total power: 15kw
Air source: 0.4m3/min, 0.5MPa
Weight: 2500kg
Dimension: 2250×1400×1600 (Machine)
740×400×1700 (Cabinet)
1150×650×2000 (Collector)
