JBZ-A Single Side PE Coated Paper Cup Machine

JBZ-A Single Side PE Coated Paper Cup Machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2017-08-25
Add to My Favorites Add to Inquiry Basket
Seller Information
San (Qingdao) Machinery Co., Ltd.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

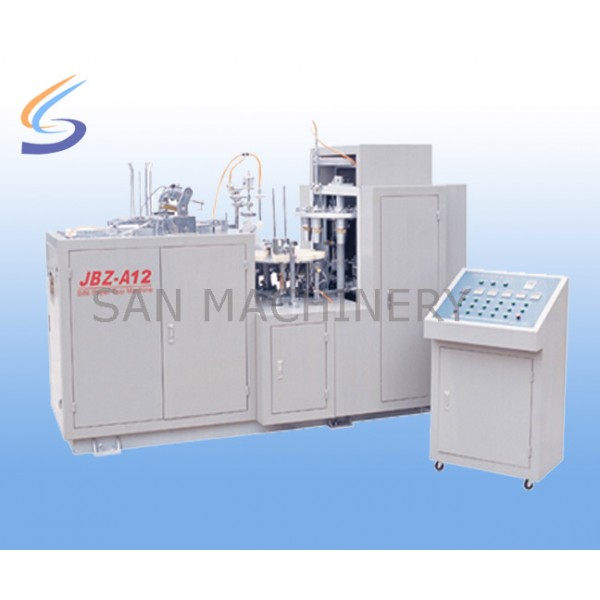

JBZ-A series paper cup machine is an automatic machine with multi-working station. It is able to produce single side PE coated paper cup, which is mainly used for ice cream or hot drinks.
Technical Specification


Model
JBZ-A04
JBZ-A12
JBZ-A16
JBZ-A22
Cup size
2~6.5oz
6~12oz
8~16oz
16~22oz
Top diameter
50~80mm
50~95mm
50~95mm
50~95mm
Bottom diameter
35~70mm
35~70mm
35~70mm
35~70mm
Cup height
30~60mm
50~120mm
80~150mm
100~175mm
Bottom folding height
≤10mm
≤10mm
≤10mm
≤12mm
Capacity
40~50 cups/min

35~45 cups/min
30~40 cups/min
Total power
5kw
5kw
6kw
6kw
Power source
380V, 50Hz (or as per customer’s requirement)
Raw material
Single side PE coated paper
Weight
1600kg
1900kg
Dimension (mm)
L×W×H
2800×1350×1750
730×600×1100
3300×1350×1900
730×600×1100
3300×1450×20000
730×600×1100
