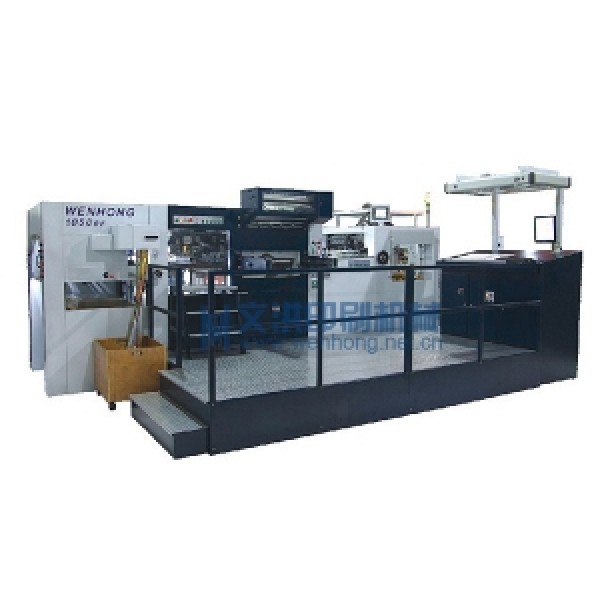

Automatic Hot Foil Stamping And Die Cutting Machine

This machine is mainly equipped with the following:

Feida/paper department

* equipped with four suction four powerful feida, deliver paper stable smoothly, at the same time, the height and Angle of suction nozzle can be adjusted accordingly;

* prepare car onoff, improve the efficiency of operations;

* the tilting paper mesa, more suitable for high speed tissue paper transport and positioning;

* keep type transport paper lifting device;

* double tension control device;

* side positioning adopts the pull and push amphibious side gauge device, according to the paper chooses, switch is simple;

* Import high quality blow \  breathe in dual vacuum pump;

* swappable block in place before the fall speed device, in favor of the high speed tissue paper positioning;

* Paper lose hair can be moving and adjusting of wheel roller, and raise the efficiency;

Hot stamping department

* the hot stamping department control system adopts the most advanced technology (with Po's);

* air-cooled foil tension shaft;

* full computer control gold foil walking, jogging set programming;

* put gold standard for biaxial scroll namely SanZongLiangHeng institutions;

* hot stamping department each axis has a high-power servo motor drive, and independent programming set gold foil walking, jogging;

Die cutting department

* the trubine crank toggle the high accuracy plane die-cutting workbench;

* on stationary plane with high precision die cutting workbench;

* of the heart, the main part of crank shaft, worm, worm gear, toggle axis) adopt imported high alloy steel;

* two sets of die cutting precision and durable steel hardness HRC45-47 degrees, and use by his side of the lock;

* die cutting of space/pneumatic locking system;

* imported pneumatic clutch/brake;

* litres of back pressure on the use of electric digital display, the intelligent pressure detection system, pressure can automatically lift,

* imported pneumatic clutch/brake;

* height and pressure tonnage precision die cutting platform easy to operate;

* At four o 'clock before  rules a flap can separate fine-tuning to adapt to the different paper under the condition of accurate positioning;

* the use of advanced technology, the single tooth scheduled to do fine-tuning before and after compensation, to achieve product processing precision requirements;

* the latest technology more chip parallel CAM intermittent chain row transmission mechanism (imported divider and import torque clutch);

* high precision imported diao paper tooth row of transmission chain;

* 7 import diao paper tooth row, each 10 stainless steel diao paper teeth and supporting tooth pillow;

* into the mouth and out of the paper, paper in place to detect magic eye;

* work magic eye monitoring with all the large LCD display interface, provide detailed troubleshooting methods;

* heart parts forced lubrication system 1.5 KW cooling loop device for the oil, oil pressure display device and low oil pressure, air pressure alarm device;

* papers on flat before die cutting device;

Paper department

* automatic main paper receiver station, convenient operation, greatly improving the production efficiency, and deputy paper using curtain type switch, greatly facilitate the operation is more suitable for small size more puzzle products;

* configuration inset counter;

* the tooth row of transmission chain up round the buffer device;

* using piecewise adjustable brush and paper kowalski b r. correction for the blower to stabilize paper department for finished goods;

* automatically add chain is used in the main chain lubrication oil plant;

The ministry of electric control

* programmable controller PLC control of the machine operation and fault monitoring system;

* electrical components and electrical circuit adopts advanced European and American countries safety standards (CE standard);
