Inside Diameter: |
6-35mm |
|
Parent Tube Length: |
750m(300mm for the tube ID below 10mm,otherwise, mandrel will be bent) |
|
Recut Length: |
Min 30mm-Max 750mm |
|
Wall Thickness: |
1-5mm |
|
Working Air Pressure: |
0.6Mpa |
|
Operator: |
1person |
|
Machinery Speed: |
8-16parent tubes /min (depends on operators practical skill) |
|
Main Motor: |
1.5Kw |

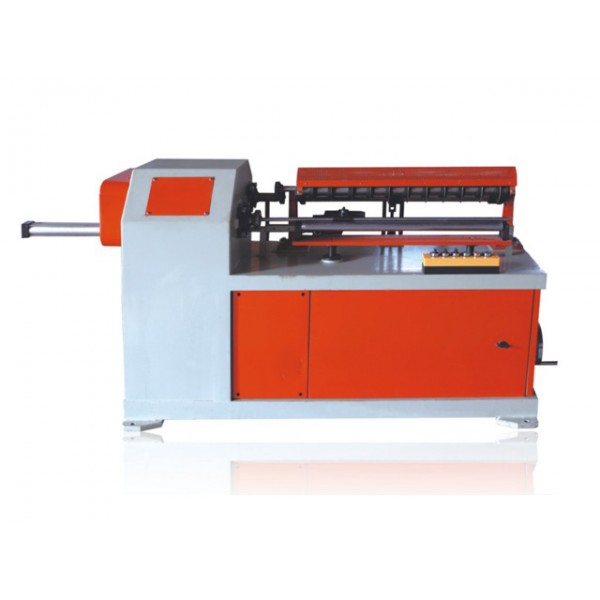

WJQ-D multi-knives paper pipe recutter:
1. I.D.:6-35mm
2. Thickness: 1-5mm
3. Length: 30-750mm
suitable for all kinds of small size paper core recutting. such as paper core pencil,paper core used for cash and fax etc.
Parameter:
a. Universal Parameter:
l Painting: Orange and white
l Electricity: 380V/220V 50HZ(according to your requirement)
b. Technical Parameter:
l Inside Diameter: 6-35mm
l Parent tube length: 750m(300mm for the tube ID below 10mm,otherwise mandrel will be bent
l Recut length: min30mm
l Wall thickness: 1-5mm
l Working Air Pressure: 0.6Mpa
l Operator: 1
l Speed: 8-16parent tubes /min (depends on operator’s practical skill)
l Main motor: 1.5KW
c. Main function:
l Cut by Multi-knives almost in the same time.
l Manually uploading the paper tube and automatic unloading.
l Manually adjust the distance of knives.
l Use alloy steel circular knives.
d. Basic Supplied Scope:
l Mandrel: 1 PC (depends on customer requirement)
l Cut knives: 11 Set
l Motor: 1.5KW
e. Main Parts Material:
l Machine frame made by cold-galvanizing plate.
l Machine frame welded by heavy-type channel steel and iron plate.
