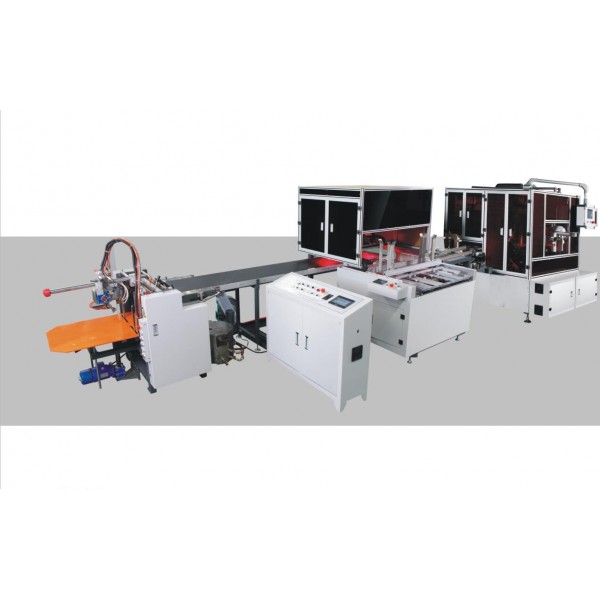

XH-485C-CTH Fully automatic drawer box machine
Introduction:
Fully automatic drawer box machine, adopt the visual positioning system as the mainframe. The Drawer box module combined automatic drawer box machine, It’s suitable for make all kinds of high-grade high cylinder wine boxes, cosmetic boxes, phone boxes, etc.
The machine adopts PLC controller, visual positioning system, and touch screen interface to realize the whole process automation such as feeding paper, glue, and sending board, positioning, sticking the bottom, wrapping edge, folding ears and forming.
Product Features:
1, The use of two 5-megapixel industrial camera, YAMAHA robot positioning, high positioning accuracy（±0.1mm）.
2, High-speed and efficient, production rate 15-20pcs / min;
3, In the process of production, there is no surplus glue, empty side, folds, scratches, rake angle, bubble etc after paper wrapped.
4, Using touch screen control system, transfer machine time is short and fast transfer version.
5, Can be infinitely extended to produce different kinds of products, so as to reduce users' risks of repeated investments of keeping buying new machine.
Technical Specification:
|
Specification
|
Parameters
|
Paper size（L*W）
|
300-800mm
|
|
160-400mm
|
Paper size（L*W）
|
240-600mm
|
|
100-300mm
|
Finished Box size（L*W*H）
|
60-250mm
|
|
60-160mm
|
|
150-320mm
|
Production speed
|
15-20pcs/min
|
Positioning accuracy
|
±0.1mm
|
Air pressure
|
0.6-0.8MPa
|
Paper thickness
|
80-300g/㎡
|
Max.paper stacking height
|
300mm
|
Cardboard thickness
|
1-3mm
|
Power supply
|
380V/50Hz/3phases
|
Constant power
|
10KW
|
Machine weight
|
4100KG
|
Machine dimension
|
L7200xW2450xH2000mm
|
