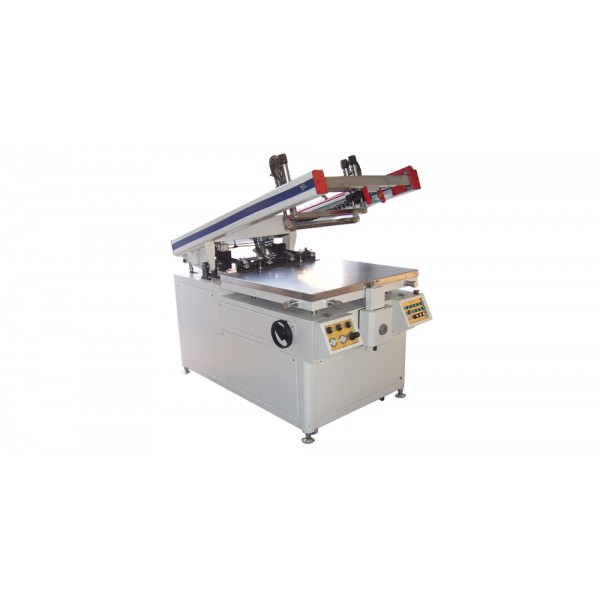

GSB series Semi-Automatic Screen Printing Machine is widely used in printing various semi-rigid materials, such as ceramic decal, cardboard，PVC，PP，PE，soft PCB, transfer paper and film switch etc.
Because the machine is suitable for many kinds of printing and controlled by simply operating, it wins much honor in the market.
Features:
1. The working table is very strength by using AL Alloy Honey Comb, it is no need to install extra lock system because of installation of handle of micro head type, and it is very simple and precise to adjust micro size.
2.Printing pressure is adjusted by press control valve of Air cylinder and the pressure is uniform.
3.Precise Motor and special rail is installed for moving of squeegee. Side Frame Up/Down is controlled by inverter, so no vibration and swing.
4.For frame clamping, the one touch type is used by pneumatic, so it is very simple to change the frame.
5.PLC program is used to work this machine and it makes easy to change to various printing method.
6.There are double safety systems for worker.
Model
Technical
GSB-5060
GSB-6080
GSB-8012
Max.Printing Area（mm）
500X600
600X800
800X1200
Printing Tabale（mm）
710X750
850X900
1100X1300
Max.Frame size（mm）
900X900
1000X1100
1300X1500
*Paper sh（mm）
3-50
3-50
3-50
Air（Kg/㎡）
6
7
8
*Print Speed（Sheet/h）
1100
1000
800
Total Power(kw）
1.6
1.6
1.85
Total Weight(kg）
520
600
800
Extion（mm）
800×1650×1400
950×1700×1400
1350×1900×1400
