Features

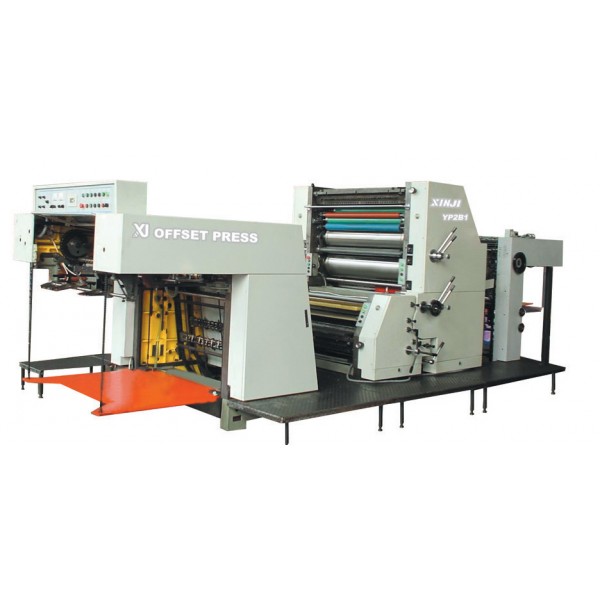

YP1B1K/YP2B1K large Folio Single/Double Color Sheet Fed Offset Press is suitable for printing wall calendars,pictures,book-covers,fine packages,books,periodicals and forms,etc.
◎sheet size in conformity with international B series paper formats(B1);
◎Cylinders held in hollow roller bearings(Patent NO:ZL02284558.5)
◎PC control and frequency-convertible motor featuring highdegree automation and reliable performance.
◎Automatic sheet transfer control,interlocking the whole press on occurrence of sheet transfer faults such as doublesheet,no-sheet and inclined sheet.
◎Low speed running for safe and easy cleaning of plate and blanket cylinders and the change-over of plates and blankets.
◎innovative gripper transfer system characteristic of large
Gripping force.
◎Quick plate changeover holder making printing plate changing
quick,easy and highly efficient.
◎Time rationing lubrication system.
◎Japanese casting technology is used for castings and the
materical is of high quality.All cams of the press are of high
quality alloy steel and nitriding treated.High frequency
quenching treatment is adopted for precision gears to
guarantee that the press can work precisely for a long time.
◎Wear proof and corrosion resisting hard coatings on cylinder
surface prolonging service life of the press.(Optional)
◎Ink supply system is calculated and deployed reasonably.
◎Alchoholic dampening system.(Optional)
Technical parameter
Max.sheet size 720 ×1040m m
Min.sheet size 360×520 mm
Sheet specifications 30-450g/m2
Max.printing area 710×1040 mm
Printing size 800×1050×0.3 mm
Blanket size 900×1060×1.8 mm
Ped size 830×1060×1 mm
Max. printing speed 10000s/h(张/小时)
Feed pile height 1060mm
Delivery pile height 910mm
Main motor power 7.5kw/11kw
Overall dimensions (5362/6209)×2987×2176mm
Net weight 9500kg/10800kg
Xinxiang Xinjichuangxin Machinery Co.,Ltd is one of the main printing & packaging machine manufacturing companies in china,specializing in the development,production and sales of printing equipments.Xinovo possesses the pioneering super large format offset printing press,unique specification,advanced technology with independent intellectual property and leading market share.
The company adhering to the “create the first brand of domestic large format printing machine product ”concept, including the 103, 118, 130, 142, 145，162 and other format single-color, two-color ,four-color, five -color, six-color printing machine nearly 30 kinds of specifications. Products are mainly used in the packaging and printing industry, such as beverages, household appliances, tobacco, liquor, cosmetics, fruit boxes, toy boxes and other packaging box printing, and can provide users with complete sets of solutions.
The company is the vice president of Henan Packaging Technology Association,the member of the National Printing Machinery Technical Committee, and the enterprise technology center in Henan province. It has strong R & D strength and has more than fifty patents.The company has nearly thirty thousand square meters of production base, including more than 100 sets of vertical grinding machine, machining center, the three coordinate measuring machine (sets) of advanced manufacturing and testing equipment manufacturing capacity, with an annual output of 250 sets of CNC printing and packaging equipment.
Xinjichuangxin is a young modern creative company,but with profound history.Xinovo inherits the technological superiority and production experience of state-operated Xinxiang Machine Tool Factory with 70-year history of precise machinery manufacturing,which was originally a key enterprise directly under Machinery Ministry.
In 2013,Xinjichuangxin starts the cooperation with German experts,trying to realize the goal of Building The Leading Brand For National Large Format Printing Press,as well as presenting perfect solutions to large format printing for customers.
