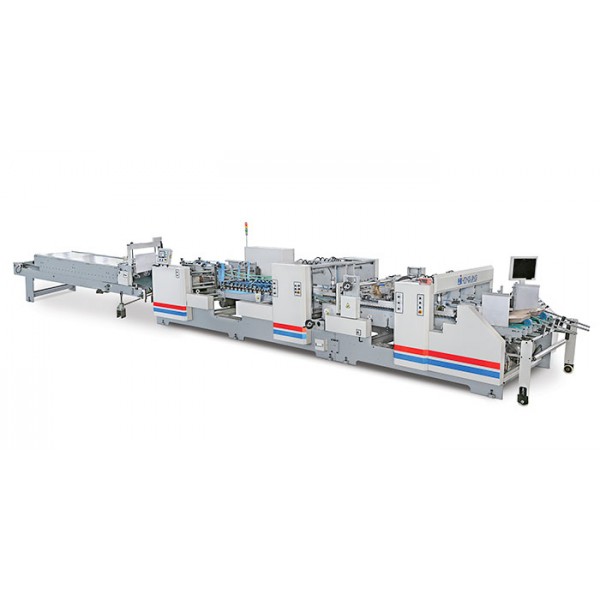

JINGYUE Series main features:
Modulation structure design,easy commissioning.
Strengthen the broadening upper and lower belt drive,suitable for corrugated cartons.
The whole machine upper pressing belt adopts main drive and cylinder pressure,more suitable for different
thickness of corrugated products.
Humanized design attachment installation, easy operation.
A hexagon spanner can adjust the whole set of machine ,easy operation.
Pressing unit has regulator,patting device,can effectively avoid the “scissors mouth” phenomenon of corrugated
products.
Collecting paper unit adopts cylinder type pressing system,easy for adjust pressure,and make the products can
pasted effectively.
Touch screen control plane.
Remote control convenience for operators to remote control the start and stop of machine .
Specification:
Performance / models | JY1200 | JY1380 | JY1450 |
Max.sheet size |
1200X900mm |
1380X900mm |
1450X900mm |
Min.sheet size |
380X180mm |
380X180mm |
380X180mm |
Applicable paper |
Cardboard 350g-800g corrugated paper F、E、B、C、A(choose small box,can do240X120mm) |
||
Max.belt speed |
240m/min |
240m/min |
240m/min |
Machine length |
15000mm |
15000mm |
15000mm |
Machine width |
1900mm |
2050mm |
2050mm |
Machine height |
1480mm |
1480mm |
1480mm |
Total power |
25KW |
25KW |
25KW |
Max.air displacement |
0.7m³/min |
0.7m³/min |
0.7m³/min |
Total weight |
7500kg |
8000kg |
8000kg |
Due to technology upgrading, our company reserves the right to modify the relevant parameters and functions, without prior notice.
