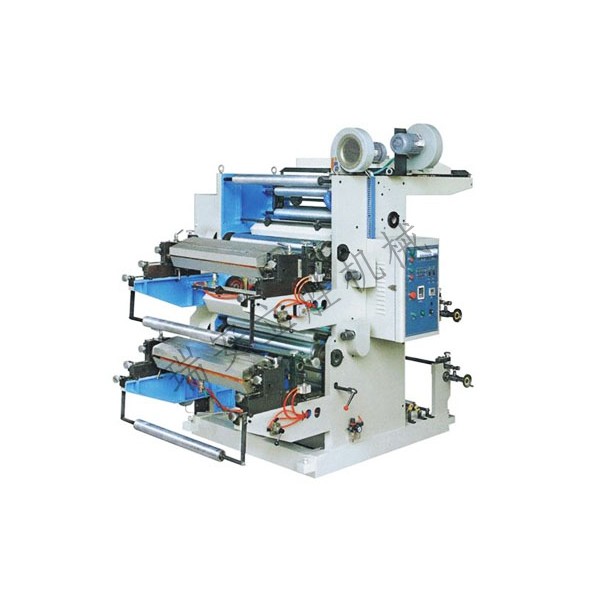

LSYT -2 Colors Flexo Printing Machine
Application:
YT Series machines adopt sensitization resin as flexible printing plate, suitable for printing kinds of rolling material , such as plastic ,paper, nonwoven fabric
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically when reach setted data or lack material
3.Cylinder of Pneumatic lifting plate , it will stir ink automatically when lift
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high speed running, it will automatically break circuit when machine stop.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Winders controlled by Magnetic power Controller
Model | LSYT-2600 | LSYT-2800 | LSYT-21000 |
Max. Web Width | 600mm | 800mm | 1000mm |
Max. Effective Printing Width | 560mm | 760mm | 960mm |
Range of Repeat Printing Length | 191~914mm | 191~914mm | 191~914mm |
Max. Diameter of Roll Material | ф450mm | ф450mm | ф450mm |
Printing Speed | 5~50m/min | 5~50m/min | 5~50m/min |
Plate Thickness (Both side adhesive tape included) | 2.38mm | 2.38mm | 2.38mm |
Total Power | 8Kw | 10Kw | 12Kw |
Overall Dimension | 2300×1860×2145mm | 2300×2060×2145mm | 2300×2260×2145mm |
