LKS-750/930 Manual Die Cutting Machine/ Semi Automatic Paper Die Cutting Machine/ Flatbed Die Cutting Creasing Machine

LKS-750/930 Manual Die Cutting Machine/ Semi Automatic Paper Die Cutting Machine/ Flatbed Die Cutting Creasing Machine For Carton Processing

Products Description

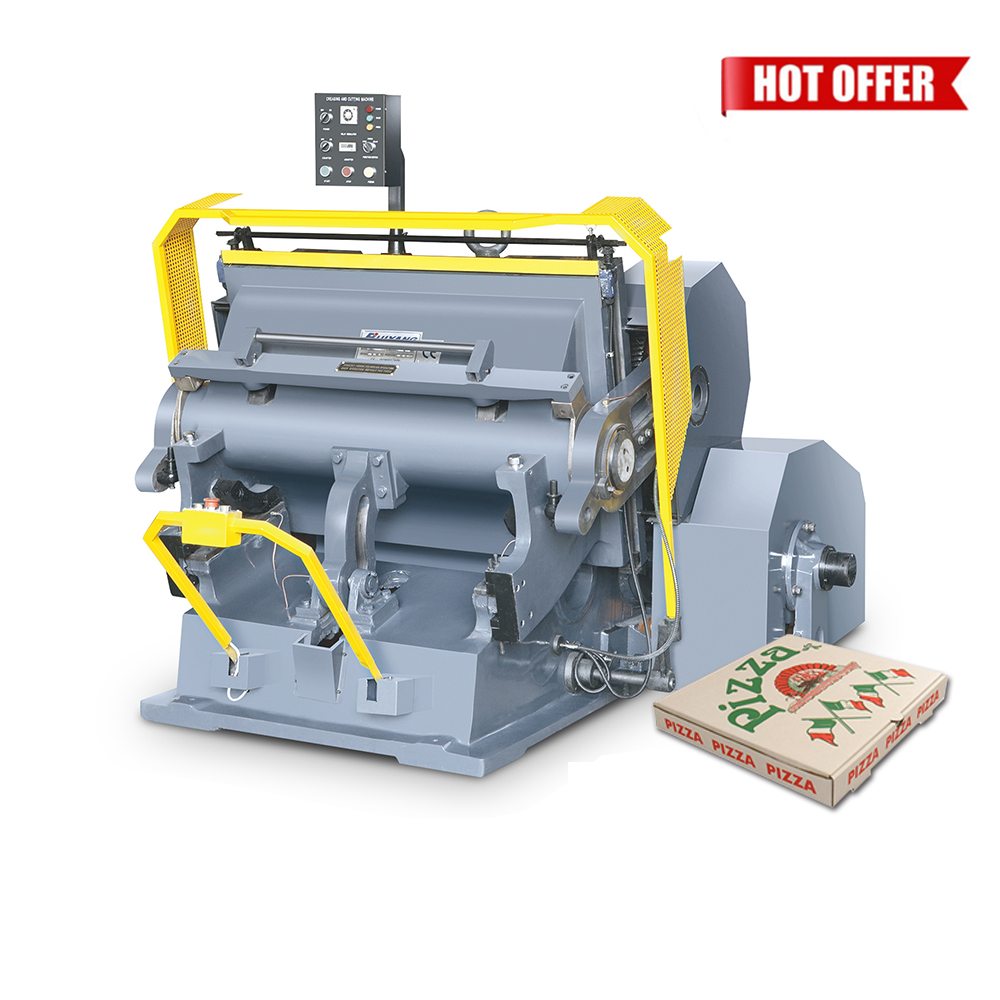

ML Series Manual Die Cutting Creasing Machine

It is mainly used for die cutting (full cut, half cut) of cardboard, PVC, leather cork, self-adhesive, EVA, double-sided tape, electronics and other materials. It is an important equipment for post-press packaging processing and molding. Different shapes of cartons can be formed according to your molds.

This equipment has low investment and high return.

Model	Inner chase size	Speed	Max. rule length	Motor power	Weight	Dimension
ML750	750X520mm	25	< 15m	2.2kw	2000kg	1650x1400x1500mm
ML930	930X670mm	23 +3	< 25	4kw	3000kg	1750x1900x1700mm
ML1040	1040x720mm	23 +3	< 28m	4kw	3500kg	2000x2010x1900mm
ML 1100	1100x800mm	22+ 3	< 35m	5.5kw	4500 kg	2000x2010x1900mm
ML 1200	1200x820mm	20 +2	< 32m	5.5kw	5000kg	2020x2020*1950mm
ML 1300	1300x920mm	15 +2	< 40m	7.5kw	6000kg	2600*2100*1950mm
ML 1400	1400x1000mm	15 +2	< 45m	7.5kw	7000kg	2600*2100*1950mm
ML 1500	1500x1050mm	14+ 2	< 45m	7.5kw	7500kg	2650*2100*2000mm
ML 1600	1600x1250mm	13 + 2	< 50m	11kw	11500kg	2850*2250*2100mm
ML 1800	1800x1400mm	13 + 2	< 60m	15 kw	13000kg	3150*2250*2250mm
ML 2000	2000x1400mm	12 +2	< 65m	15 kw	15500kg	3150*2250*2300mm
ML 2200	2200x1400mm	12 +2	< 68m	18 kw	16500kg	3300*2250*2300mm
ML 2500	2500x1500mm	12 +2	< 70m	22kw	18500kg	3600*2250*2500mm
ML 2600	2600x1500mm	12 +2	< 70m	22kw	2000kg	3700*2250*2500mm
ML 2800	2800x1500mm	12 +2	< 75m	22kw	2300kg	3900*2300*2800mm
ML 3000	3000x1600mm	12 +2	< 80m	30kw	35000kg	4200*2300*3000mm

Features:

1. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
2.High strength due to whole body casting with high quality material.
3. Smooth running, high pressure and low noise with 4-step helical gear mechanism.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Operational altitude is reasonably arranged, moving-bed opens to its maximum.
6. Electrical system is designed in conformity with IEC standard.
7. The functions of single operation, continuous operation and opening delay are available; delay range is adjustable.
8. Reliable safety system.Concentrated lubricating system.
9. The lubrication system of centralized refueling and manual refueling (optional) can better guarantee the smooth oil path and
facilitate the maintenance of the lubrication system.
10. The shaft sleeve of the transmission part adopts compound copper sleeve (to ensure lubrication) and pure copper copper sleeve of the connecting rod.Make the machine more precise.
