Vacuum Transport Flexo Printer Slotter Diecutter Machine

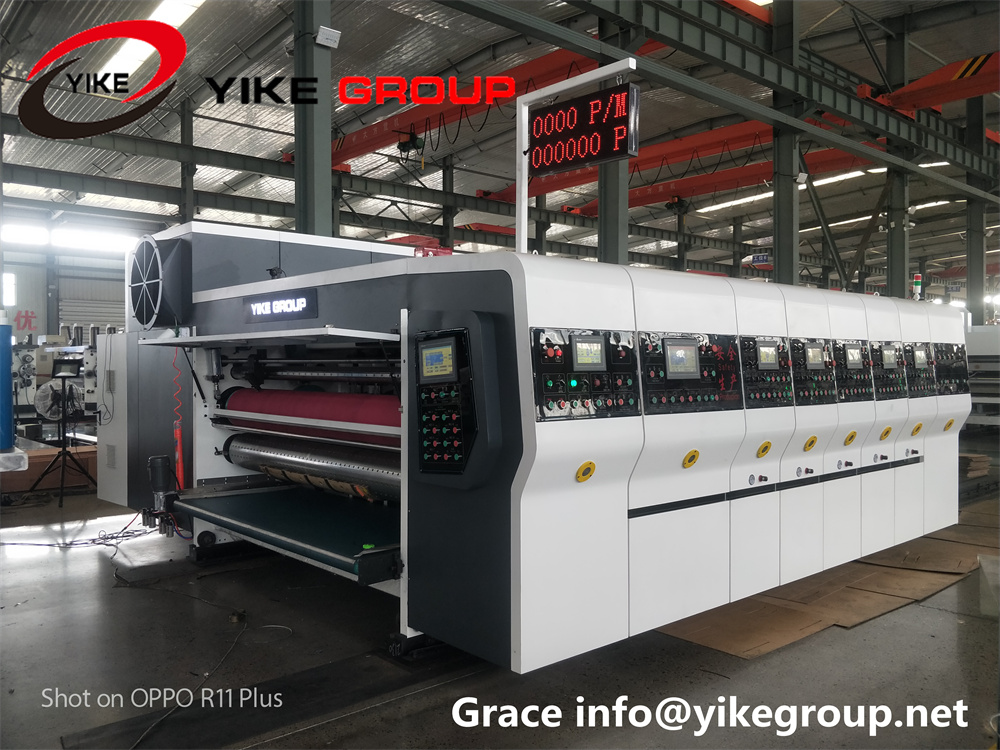

FULLY AUTOMATIC VACUUM TRANSPORT FLEXO PRINTER SLOTTER DIECUTTER STACKER MACHINE

China YIKE Group

Web: www.yikegroup.net

Email: info@yikegroup.net

Whatsapp: +8617743859771

※Main Technical Parameters

※LEAD EDGE Feeder Unit

Lead-edge Feeding System

ü Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic

ü 7.5KW high pressure centrifugal fans, according to the cardboard

warping degree of frequency control pressure, to ensure warp

cardboard or thin cardboard high-speed accurate transmission.

ü Left and right side baffle position electrically adjustable,

screw-driven.and can remember by computer.

ü Front baffle adjust the position of the upper and lower intervals

synchronization by manual.

ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

ü Install 7” touch screen, could automatically display the

 production quantity, production speed, and set the production quantity and every operating.

ü Slotting part is equipped with the interlock switch, to achieve the

emergency stop, stop feeding or feeding.

Machine Separation & Combination

ü Button switches electrically control the separation and combination

 of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.

ü Air pressure interlocks, lock securely, conveniently and accurately.

ü Machine clutch drive shaft is equipped with overload protection device.

ü Active self-locking function: if unit is not completely locking state,

 the host cannot start, to ensure the safety of machine and operator;

 while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse  and personal injury.

Dust-removal System

ü Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

Feeding Roller: Feeding Roller

ü Upper feeding roll adopts outer diameter φ156mm rubber roller,

elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.

ü Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.

ü According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

※Printer Unit

Printing Roller

ü With printing plate

ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate

ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

ü Installed with foot switch to control plate roller reversing, convenient change plate

ü Auto-zero function, order memory.

ü Printing roller plate-change and fix-plate function.

ü Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

vacuum sucking transport UNIT:

ü Use Italy technical sucking transport device

Pressing Roller

ü Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation

ü Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy

ü Diameter 175mm

ü Printing roller can be adjusted for a distance 0-12mm

ü pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.

Anilox Roller/CERAMIC ROLLER

ü Outer diameter φ216mm

ü Steel anilox roller

ü anilox roller mesh：150-250 LPI

RUBBER ROLLER/DOCTOR BLADE

ü JIZHOU famous brand rubber roller

Ink System

ü Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability

ü Circulating pneumatic ink

ü Screen for filtering impurities, guarantee printing quality

Phase Adjust System

ü Planetary gear structure

ü Digital computer  360 ° adjustment, both running and stopping state conditions

ü Printing phase adjustment of PLC computer display adjustment

ü After units separate, automatic reset system (eraser memory)

※Slotting Unit

ü Angle cutter made by ITALY model, cutting ring use Rubber materials

ü Computer auto control cardboard size by Linear guideway

ü 6 shaft with rubber pre-creasing , creasing , slotter

ü The first pressure line round, after preloading cardboard not easily crush

ü The above press round Urethane appearance package, will not damage the cardboard

ü The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise

ü Slotting phase and box height, computer and electric digital control

ü Preload, creasing gap adjustment adopt computer and electric digital control

ü The slotter knife stock gap adjustment adopt self-locking structure

ü There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.

ü Preload wheel, crease wheel, slot knife traverse position computer and electric digital control

ü The slotter knife adopt Anti-knife manner

ü Computer automatic arrange knife, can stockpile 999 memories

※Die-cutting Unit

ü Rubber roller mechanical spiral commutation 40mm move about horizontal structure

ü Die-cutter phase, computer and electric digital control

ü Horizontal phase, computer and electric digital control, range ±5mm

ü Rubber roller and die roller gap use computer and electric digital control,

ü Adjust the transfer roller use computer and electric digital control,

ü The rubber roller compensated by motor-driven,control the speed of the rubber roller, range ±3mm

ü Rubber roller hsiuping cutting structure, keep rubber surface roughness

ü Stripping the belt longitudinal output，to easy clean waste paper.
