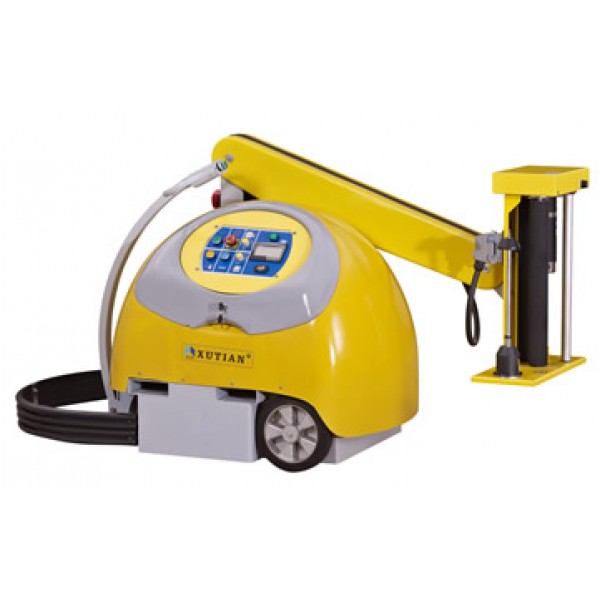

Mobile robot for wrapping in less than one minute palletized loads of any shape, weight and dimension with stretch film.
|
Specifications
|
Control System:Programmable
|
Min pallet size:600 x 600mm
|
Max pallet height:2100mm
|
Film reel inside diameter:75mm
|
Film reel outside diameter:250mm
|
Film-rack lift motor:0.18kw
|
Power supply:220V 50HZ 1Phase /380V 50HZ 3Phase
|
Machine weight :325kg
|
|
|
Parameters easily adjustable from the panel
|
*all function parameters on display
|
*Bottom pallet wrapping rounds from 0 -10
|
*Top pallet wrapping rounds from 0-10
|
*Photocell sensing externally adjustable
|
*Spool carriage up/downward speed adjustable from 1,3 a 5, 4 M/MIN
|
*4 separate wrapping cycles
|
*Double cycle (upward/downward)
|
*Single cycle (only upward or only downward)
|
*Fixed height of reinforcing wrapping rounds
|
*Manually adjustable wrap style
|
|
Features
|
* No pallet size limit
|
* Foldable mast
|
* One-man-install
|
* Move easily
|
|
Member Company and Joint venture
*Company in Nantong, Jiangshu province that founded in August 1997 was moved to Taizhou of Zhejiang province in January 2001, combining with Xutian Packing Machine Company here.
*Company in Taizhou, Zhejiang province that founded in December 1998 was combined with Nantong Company. In May 2004, We set up ZheJiang XuTian Packing Machine Company.
*DongGuan Company was founded in July 2000.
*Shanghai Company was founded in Apr 2001.
*Wenzhou Company was founded in Oct 2003.
*Dongguan AtlantaXutian JV company was founded in 2007.
Company Brief Introduction
We are a group company, specialized in manufacturing various pallet wrapping machine,stretch wrappper,strapping machine etc packing machines. We haveR&D department to develop new products and support quality improvement. Taizhou Company and Dongguan Company successfully passed ISO9000:2000 in Feb 2003. And our Semi-Automatic strapping machine series, Pallet wrapper, carton sealing machine are CE certificated.
Main Product
XT-80 Semi-Automatic strapping machine, S-86 Automatic strapping machine, T88 semi-automatic strapping machine, XT55 carton sealing machine, XT-45 Stretch wrapper, AQD19E Portable PET tape strapping machine, Hand strapping tool. (Our leading product XT-80 Semi-Automatic strapping machine series can produce over 32,000 sets)
Domestic Market: Sales net spread almost all over the country. And XT80 Semi-Automatic series has occupied over 50% domestic market.
Oversea Market: Our Products sell well in India, Thailand, Singapore, Indonesia, Vietnam, Taiwan, Iran, Saudi Arabia, some countries of Europe and South American.
