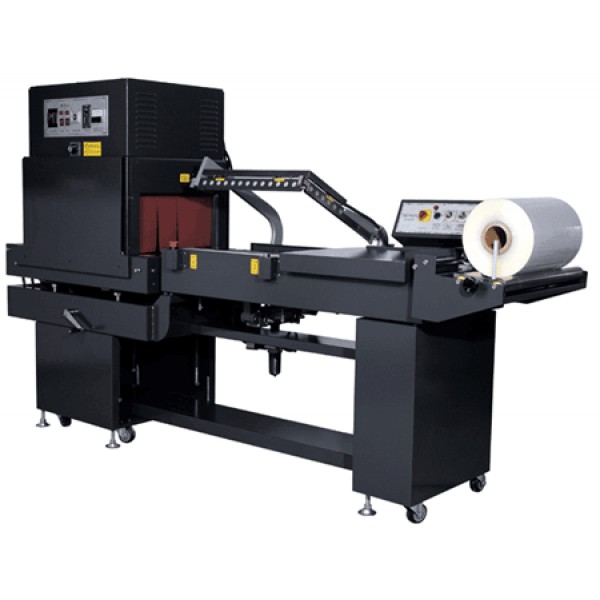

L bar sealer specification
|
Scope of Application
|
|
Suitable for electrical products, hardwares, softwares, food, printing products, medications, floor boards, ceramics etc's packing.
Suitable for PVC, POF, PP film's using.
|
|
Model
|
FL-5545T
|
|
Machine dimension L×W×H(mm)
|
1560×725×1040
|
|
Max packing size L×W×H(mm)
|
450×400×250
|
|
Max sealing size L×W×H(mm)
|
550×450
|
|
Packing speed(pcs/h)
|
800-1200
|
|
Net weight (kg)
|
125
|
|
Power (kw)
|
1.2
|
|
Power supply
|
1f110V/220V 50/60Hz
|
|
|
SM4525 Shrinking tunnel Technical instruction
|
|
All switches and units are original from famous manufactory, the performances are stable.
Free to adjust the speed of conveyor belt by electronic speed controller.
The surface of machine would not over heat because it is equipped with double insulated device.
Import insulated curtain which be able to resist high temperature in order to reduce energy wasting.
It adopts stainless steel heater to heat up quickly, and equipped with large power blowing motor to keep big flowing but evenly. Conveying speed or tunnel's temperature can be freely adjustable according to the size of products and output.
Convey chain is made of solid poles covered by silica gel tube, to bear such objects in heavy and would not be distorted.
Such various shrink film as PVC/PP/POF are applicable.
|
|
Model
|
SM-4525
|
|
Machine's dimension L×W×H(mm)
|
1300×715×1455
|
|
Max packaging size L×W×H(mm)
|
700×400×200
|
|
Size of tunnel L×W×H(mm)
|
1000×450×250
|
|
Packing speed (pcs/h)
|
2000-3000
|
|
Net Weight (kg)
|
185
|
|
Power (kw)
|
8
|
|
Power supply
|
3f220V/380V 50/60Hz
|
|
Member Company and Joint venture
*Company in Nantong, Jiangshu province that founded in August 1997 was moved to Taizhou of Zhejiang province in January 2001, combining with Xutian Packing Machine Company here.
*Company in Taizhou, Zhejiang province that founded in December 1998 was combined with Nantong Company. In May 2004, We set up ZheJiang XuTian Packing Machine Company.
*DongGuan Company was founded in July 2000.
*Shanghai Company was founded in Apr 2001.
*Wenzhou Company was founded in Oct 2003.
*Dongguan AtlantaXutian JV company was founded in 2007.
Company Brief Introduction
We are a group company, specialized in manufacturing various pallet wrapping machine,stretch wrappper,strapping machine etc packing machines. We haveR&D department to develop new products and support quality improvement. Taizhou Company and Dongguan Company successfully passed ISO9000:2000 in Feb 2003. And our Semi-Automatic strapping machine series, Pallet wrapper, carton sealing machine are CE certificated.
Main Product
XT-80 Semi-Automatic strapping machine, S-86 Automatic strapping machine, T88 semi-automatic strapping machine, XT55 carton sealing machine, XT-45 Stretch wrapper, AQD19E Portable PET tape strapping machine, Hand strapping tool. (Our leading product XT-80 Semi-Automatic strapping machine series can produce over 32,000 sets)
Domestic Market: Sales net spread almost all over the country. And XT80 Semi-Automatic series has occupied over 50% domestic market.
Oversea Market: Our Products sell well in India, Thailand, Singapore, Indonesia, Vietnam, Taiwan, Iran, Saudi Arabia, some countries of Europe and South American.
