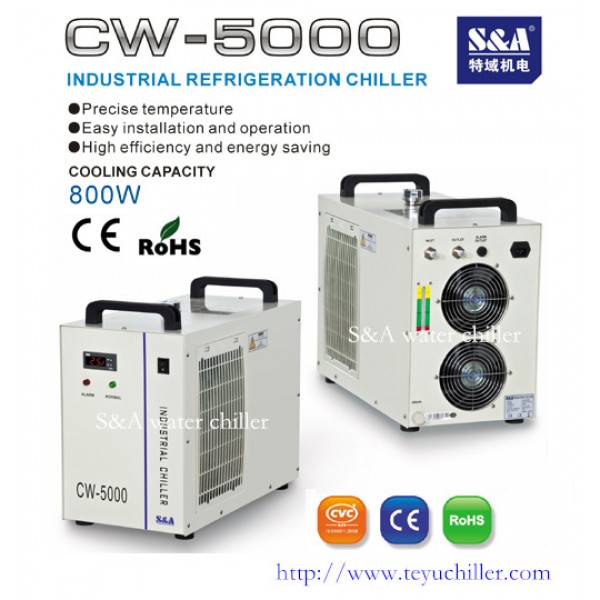

Recirculation water chiller CW-5000 110V-220V
50/60Hz
S&A CW-5000 is refrigeration type
industrial water chiller of 800W cooling capacity. It’s mainly used to have the
heat generated during the laser device working that gone through the
refrigerating cycle in compressor refrigeration system and eventually
transferred to the air.
Recirculation water chiller features
1. 800W cooling capacity; use
environmental refrigerant;
2. Compact size, long working
life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature
controller has 2 control modes, applicable to different applied occasions;
with various setting and display functions;
5. Multiple alarm functions:
compressor time-delay protection, compressor overcurrent protection, water flow
alarm and over high / low temperature alarm;
6. Multiple power specifications;
CE approval;RoHS approval;
Chiller Specfications:
CW-5000AG: applied to cool a single 80W CO2
laser tube (emitting rate higher than 60%);
CW-5000AH: applied to cool a single 5KW
spindle or welding equipment;
CW-5000AI : applied to cool a single 5W-10W
solid-state laser.
Voltage:110V-220V; Frequency: 50/60Hz;
Refrigerant: R-134a
Pump
power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max.
lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs;
G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70
X 43 X 58 cm (L X W X H)
