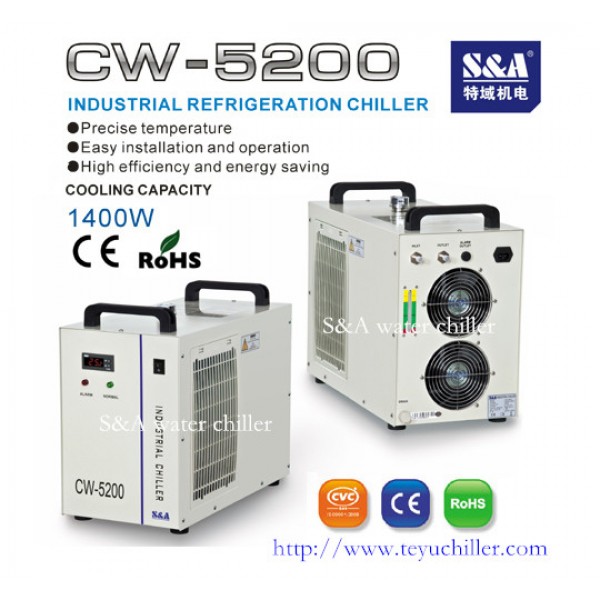

Recirculating Cooler/Chiller CW-5200 1400W

S&A CW-5200 is refrigeration type industrial water chiller. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3 precision and temperature control range in 5-35. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control.

Recirculating chiller specfications:

CW-5200AG: applied to cool a single 130W CO2 laser tube

CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.

CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube;

Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter.

 Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L

Max. lift:10M-25M; Max. flow: 10L/min- 16L/min

N.W: 26Kgs; G.W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
