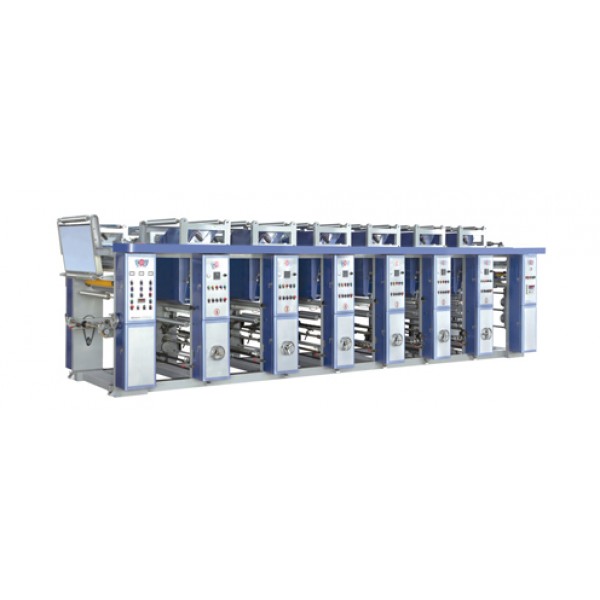

ASY-D computerized rotogravure printing machine (with optional configuration of computer automatic c

ASY-D computerized rotogravure printing machine (with optional configuration of computer automatic c

Price:
Get Latest Price
Brand:
Qiangda
Validity:
Permanent
Date:
2015-12-18
Add to My Favorites Add to Inquiry Basket
Seller Information
Wenzhou Qiangda Printing Machinery Co., Ltd.
Zhejiang China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Application:

The machine is suitable for continuous multi-color printing on roll-shape materials in good performance, such as BOPP, PET, PVC, PE, aluminum foil, paper and pellicle.



Feature:

1. Newly improved gearbox and register device with clutch for highly accurate color register.

2. Sealed oven and heating drying system with stainless iron cooling fin for energy saving and quick drying.

3. Automatic tension system and magnetic powder brake for control of unrolling. torque motor for rolling, and aluminum alloy in static balance to maintain stable tension.

4. Dual-station rolling and unrolling, and semi-automatic material change without machine halt.

5. Pneumatic dandy roll, convenient in mean pressure.

6. Frequency conversion speed control for one-off continuous printing on both sides.



Main technical parameters:

Mode

ASY-D600/6 colors

ASY-D800/6 colors

ASYD1000/6 colors

Printing length

220mm-1100mm

220mm-1100mm

220mm-1100mm

Printing width

600mm

800mm

1000mm

Printing speed

10-70mm

10-70mm

10-70mm

Overprint precision

±0.15mm

±0.15mm

±0.15mm

Total power

48kg

42kg

48kg

Weight

6700kg

6200kg

6700kg

Overall dimension

8800×2400×2300mm

8800×2400×2300mm

8800×2600×2300mm
