Application

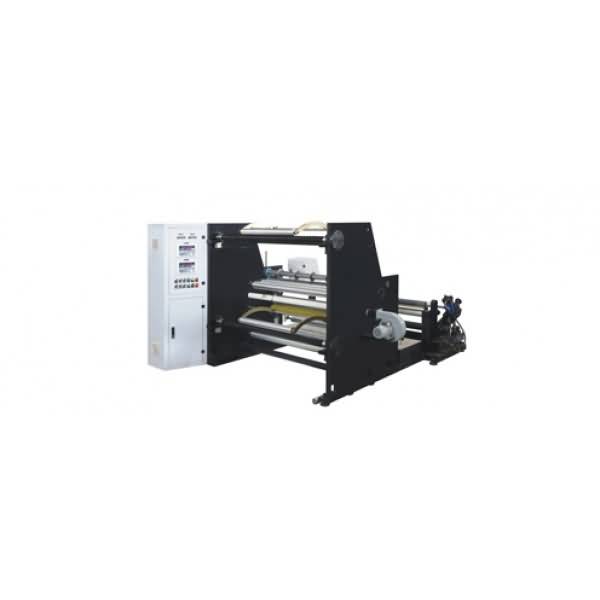

The machine is suitable for the vertical splitting of various kinds of roll-shape materials such as paper and adhesive sticker.
Feature
1. Directly driven by motor, rolling axis with automatic tension control through vector frequency conversion.
2. Removable rolling inflatable shaft, convenient in unloading (Automatic unloading device is available as an option).
3. Magnetic powder brake for unrolling, with automatic tension control.
4. Inflatable shaft for loading and unloading unrolling to pneumatically lift and lower coil, convenient in loading and unloading with high efficiency. Automatic deviation correction for unrolling.
5. Circular cutter slitting in smooth surface; air exhaust device for side waste and automatic deviation correction for unrolling.
6. System with meter counter, automatic stop by meter counter and other functions.
7. System with perfect mechanic-electric- pneumatic integrated design and great safety protection.
Main technical parameters
Mode
|
FHQB-1300
|
FHQB-1600
|
Width of raw materials
|
1300mm
|
1600mm
|
Maximum diameter of feeding
|
ф1000/1300/1500mm
|
ф1000/1300/1500mm
|
Mechanical speed
|
30-250m/min
|
30-250m/min
|
Maximum diameter of receiving
|
800/1000/1300mm
|
800/1000/1300mm
|
Slitting width
|
30-1300mm
|
30-1600mm
|
Deviation correction accuracy
|
±0.5mm
|
±0.5mm
|
Total power
|
15Kw
|
20kw
|
Weight
|
3800kg
|
4000kg
|
Overall dimension
|
3600×2900×1900mm
|
3600×3200×1900mm
|
