Product Feature:
Automatic Carton Folding Sealing and Strapping Line is combined with automatic fold carton sealer and strapping machine, it can automatic flaps folding, up/down sealing and strapping continuously, which achieves automatically sealing and strapping to save production cost, and it also has function of automatically stop and start, and you can adjust them according to different size of cartons.

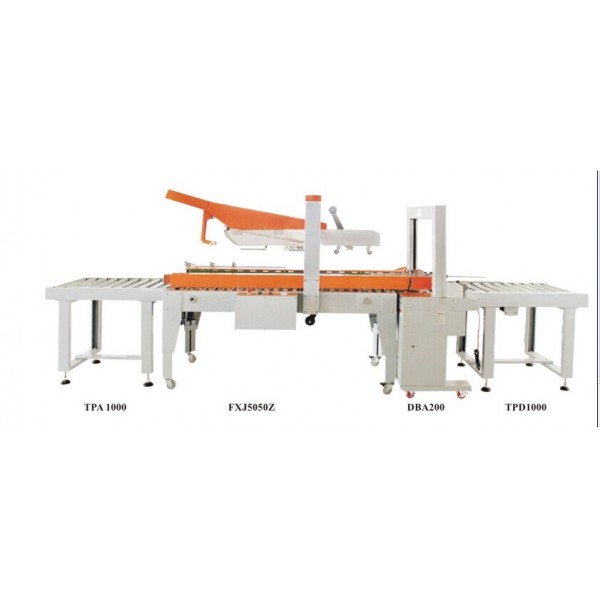

The line consists:
1) FXJ-5050Z Automatic flap folding carton sealer 1 set
2) DBA-200 Automatic strapping machine 1 Set
3) TPD-1000 1 meter driving roller conveyor 1 Pc
4) TPA-1000 1 meter non-driving roller conveyor 1 Pc
Technical Specification
Voltage |
AC 220V-380V/50-60HZ |
Power |
1.4 KW |
Max. Sealing Size (L x W x H) |
600 x 500 x 500 mm |
Max. Sealing Size (L x W x H) |
180 x 130 x 130 mm |
Tape Sealing Speed |
16 m/min. |
Height of working table |
810mm |
Sealing tape |
BOPP PVC tape with width of 48mm or 60mm |
Suitable Strapping Belt |
Width 9-15mm; Thickness 1.1-1.5mm |
Working Air Pressure |
0.5 Mpa |
Dimension (L x W x H) |
4500 X 1420 X 1690mm |
Net Weight |
500 Kgs |
