KXJ5050 Carton Erector and Bottom Sealer

KXJ5050 Carton Erector and Bottom Sealer

Price:
Get Latest Price
Brand:
Winpack
Validity:
Permanent
Date:
2015-11-13
Add to My Favorites Add to Inquiry Basket
Seller Information
Wenzhou Winpack Machinery Co.,ltd
Zhejiang China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Product Feature:

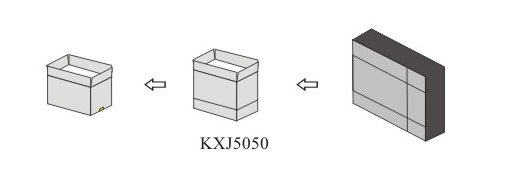

This machine can erect carton and make bottom sealing automatically, and its vertical storage is adopted for storage carton blanks, for which carton blanks can be added at any time without stopping the machine; It's suitable for forming and sealing cartons of the same size. If carton sizes need to be changed, the operator should adjust the machine manually (finishing in 2-3 minutes);It's rationally designed so that the forming, folding and sealing process are accomplished simultaneously; All the parts are precise and durable, without causing any vibration in running .Running steadily with long life; Light in weight, high performance and speed.



Technical Specification

Model

KXJ5050

Carton Size

L200~450mm/W150~400mm/H100~350mm

Table height

Min.H600 Max.H720mm

Speed

1-10 box/min

Dimension (L x W x H)

2000X1900X1450mm

Power supply

220V/380V 50/60HZ

Air source

>500L/min0.4~0.8Mpa

Tape

W48mm-W60-75mm*L1000

Machine weight

NW-400kg   GW-550kg
