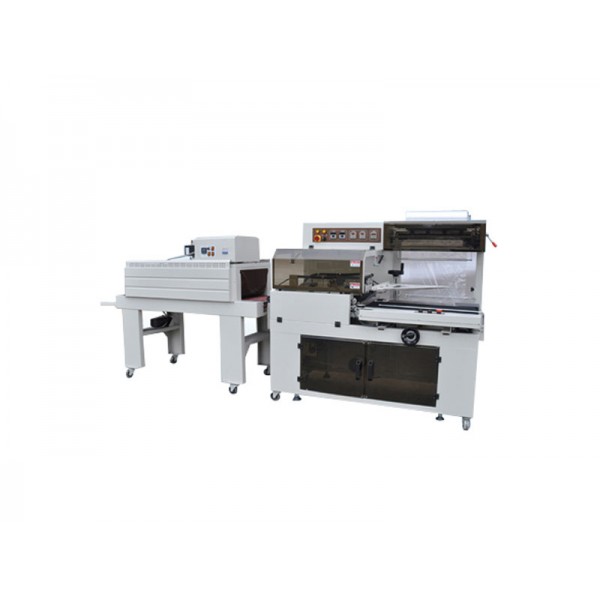

FQL450A+BS4522N Automatic L Type Sealer and shrink packing machine

FQL450A+BS4522N Automatic L Type Sealer and shrink packing machine

Price:
Get Latest Price
Brand:
Winpack
Validity:
Permanent
Date:
2015-11-20
Add to My Favorites Add to Inquiry Basket
Seller Information
Wenzhou Winpack Machinery Co.,ltd
Zhejiang China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Products Feature:

This automatic shrink packaging machine is our new type machines, shrink packaging for food, beverages, candy, stationery, arts and crafts, hardware tools, daily necessities, chemical supplies and other objects. Shrinking machine packaging items can be sealed, moisture, pollution prevention, and protection of goods from the impact from the external buffer, especially when packing fragile items, to prevent the vessel broken when flying. In addition, you can reduce product demolished, the possibility of theft.



All the heating tubes are made of stainless steel, highly efficient energy-saving (saving more than 15%) and contraction temperature and motor transfer speed is adjusted, and a wide adjustment range, and the original drum rotation device can work continuously. Can adjust its sealing and cutting the bottom of the shrinking machine is equipped with casters can be free to promote any adjustment of the level, according to the size of the packaging.



Technician Specification

Model

FQL-450A

FQL-550A

Power supply

220v  50/60HZ

Power

1.35KW

1.5KW

The highest packing

125mm

125mm

The size of the sealing line

560x440mm

660x540mm



Production capacity

15-30bags/min

Atmospheric pressure

0.5Mpa

Dimensions

1550x730x1360mm

1650x830x1360mm

The whole weight

300kgs

350kgs



Model

BS4522N

BS5522N

Voltage

380V/50HZ, 3P

Power

12KW

12KW

Loading weight

30kgs

30kgs

Tunnel Size (mm)

1200×450×220

1200×550×220

Dimension

1700×720×1300

1700×820×1300

Conveyor speed

0-10m/min

Weight

130kgs

150kgs


Some packed samples as below:
